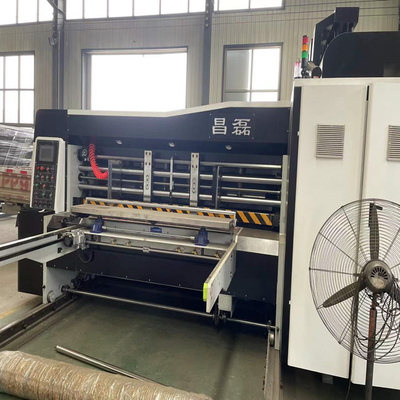

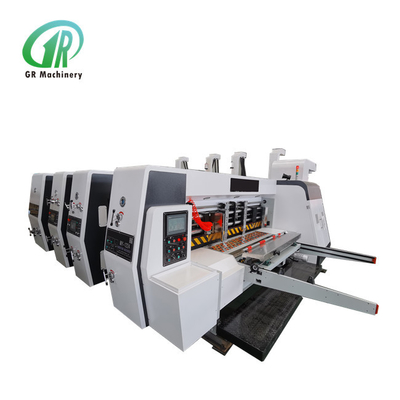

ISO PLC control Corrugated Carton Flexo Printing Machine With Slotting Die Cutting Stacker

Auto Corrugated Carton Flexo Printing Machine With Slotting Die Cutting Stacker

Product Description:

Feeding-unit:

1. Lead edge feeding type.

2. Vacuum absorption assist paper feeding ensure stable high-speed operation. The air volume can be adjusted according to the camber of the paperboard.

3. Front baffle can be electrically adjusted with scale on it, easily understood.

4. Side baffle can be adjusted electrically, with digital setting and pneumatic appliance.

5. Clutch of the machine is controlled electrically. With alarm.

6.  Equipped with brust to sufficiently eliminate dust and scraps as well as foreign substances on the printing surface improve printing quality

7.  Skip feeding device with continuous feed or spacing feed options.

8. Pneumatic interlocking mechanism.

9. Equipped with dust clean device for the printing side of the paperboard and improve the printing quality

10. PLC and color touch screen. Lower failure and higher efficiency, and is easy to learn and operate.

11. The main machine and fan motor applies transducer speed regulation,stable and energy saving.

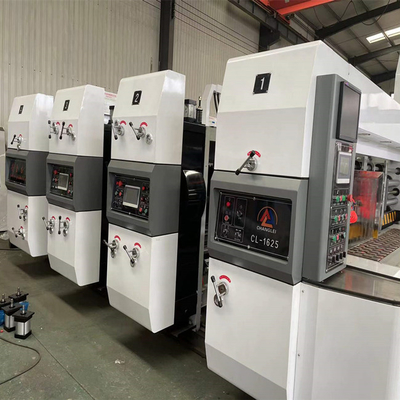

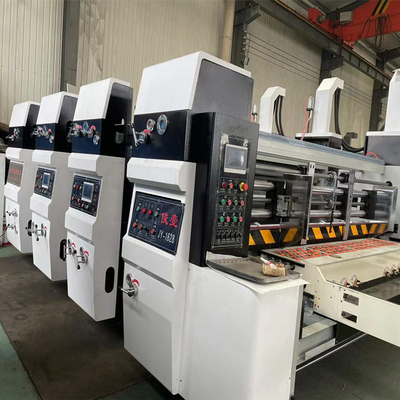

Printing unit:

1. The printing roller and trace pressing roller: good quality SSTU, grinded and hard chrome-plated.

2. Hang printing plate system, it is easy to install and change printing plate. Foot switch operate.

3. International standard high-precision harmonic phasing device,PLC and touchscreen controlled 360 degree adjustment.

4. Special planet gear design enables long service life.

5. Equipped with auto braking device with braking mechanism to lock rotation of press plate roller and maintain the fixing point of original gears when the printing machine breaks away

6. With auto reset system after cleaning

7. Computerized digital axis adjustment,with adjustmental distance of ±10mm

8. Equipped with auto raising device on the reticulate roll,separated the printing board when stopping feed paper

9. All the intervals adopt computerized adjustment and digital setting

10. Installed with ink roller rotation electrical machinery to prevent water ink drying while main machine stopping.

Slotting unit:

1. The function of the double shaft slitting unit(Adopt units). Big size carton box or kicking paperboard slitting can save loading knife time.

2. Slitting phase and the height carton box adjusting, computer and the electrical number can be controlled.

3. Slitting knife a move transversely structure, screw with linear axis that moble more flexible and accurate.

4. The up and down knife move at the same time, keep the linkage of the knife, accurate, extend the service life tools.

5. Slitting knife shaft space, computers and digital electronic adjustments.

6. The slitting knife move transversely double prevent collision protection device (electronic and mechanical). Elastic and corner cutting blade structure, three layer, five layer board and corner cutting no adjustment and operation more convenient.

7. Line wheel, slitting knife a move transversely adjustment, computer and electric control.

8. Creasing gap adjusting, computers and digital electronic control (choose configuration).

Die-cutting unit:

1. The rubber roller adopt mechanical control the position move left and right. The movement distance is 40mm.

2. The phase of the die-cutting unit adopt PLC and electric 360° adjust, accord the error to input the adjust data, can be adjusted while the machine running or stop. (PLC with touch screen adjustment as an option).

3. The horizontal moving of the die roller adopt PLC and electric adjustment, input the adjust data accord the error, adjusting distance is 10mm. (PLC withe touch screen adjustment as an option).

4. The space adjustment of rubber roller and die roller adopt self-locking structure, with cylinder big scope quickly adjust, decrease the rubber wear. Increase the rubber life.

5. The space adjustment between the feed rollers adopt self-locking structure.

6. The unique speed compensation device can make the rubber roller rolling running with the die roller, make the surface speed of the rubber cushion is completely controlled by the die roller, the shape to the carton sheet will absolutely equal to the die pattern.

7.There is a rubber repair device with the machine, the rubber can be used after be repaired.

Stacking unit:

1. Paper carrying arm

① Tightness of arm belt is adjusted separately. It is not limited by equal length of belt.

2. Lifting and lowering of platform

① Powerful chain drive

② piling height: 1600mm

③ There is brake function on the platform lifting driving motor. It can keep platform at specific place and will not slide down.

④ Safety device can make platform under control and keep operating personnel in safety

⑤ Plane wrinkle climbing belt can prvent boards from sliding down.

3. Board carrier

① Pneumatic carrying baffle. When the height of board carrying board will put out automatically to catch cardboard, when the height meets to predetermined height

② Position of back baffle is adjusted manually.

Note:

1. Payment terms: 30% paid for deposit by T/T before production arranged, the balance to be paid before shipment by T/T.

2. Delivery time: 70 days after receiving deposit.

3. Packing: plastic film packing.

4. Warranty: 1 year.

Technical Parameter:

Our company

 Product packaging

FAQ:
Q1: How is the warranty of the machine?
A: Warranty period: 12 months from the shipping date of machine. Warranty will be not valid if machine subject to misuse or accidental damage or operator's error. During the valid time, we will supply spare parts. If you have any other questions, Kindly contact us and we will reply you through product's photos and videos to make every detail clear.
Q2: How about the after-sale service?
A: 1) TM online 24 hours, also contact by email, skype, wechat, whatsapp, etc.
2) To solve the problems with videos/pictures.
3) One year warranty for spare parts change.
Q3: Is it safe on the payment for me as we are the first cooperation?
A: We can do the trade assurance on Alibaba, which will guarantee your products receiving, we also accept other safe payment way as you want.
Q4: What is your minimum order quantity, can you send me samples?
A: Our minimum quantity is 1 set, as our product is machinery equipment, it is difficult to send you samples, if you have any questions about the products, please feel free to contact us for more detail, we are glad to provide you more information such as specifications, video, etc.
