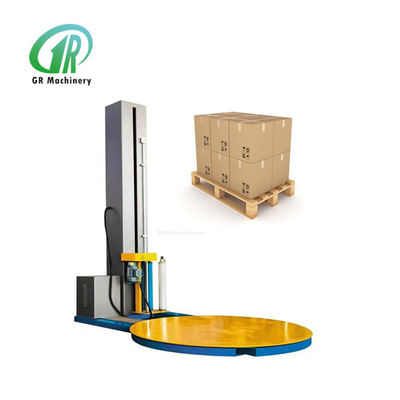

Film Winding Packing Carton Box Strapping Machine 1650 Type Automatic Pneumatic
The machine uses a winding method to package various regular or irregular goods, and uses the retractability and self-adhesiveness of the stretch film to bind the goods and pallets into a whole, which plays a fixed role and protects the goods from dust and moisture. , The role of preventing damage. Suitable for fast transportation or storage of large quantities, bundling cartons, bottles or bulky items. It greatly reduces labor intensity and improves packaging efficiency.
Product Description:
PLC programmable control, the number of winding layers can be adjusted.
Altitude setting is more reliable and stable.
Overhead height can be set.
Turntable drive.
Turntable frequency conversion adjustable speed 6-16rpm.
Turntable automatic reset.
Turntable chain drive 8 double tugs.
Thin film system:
Membrane frame power pre-stretching mechanism, pre-stretching can reach 250%;
The ascending and descending speed of the film rack can be adjusted separately, and the film feeding speed can be adjusted.
The number of top and bottom windings are separately controlled.
The follower mechanism of the film system can be pulled.
Topping system.
Pneumatic top pressure, stable and reliable.
Product Detail:
Technical Parameter:
| Product Name |
Film Winding Packing 1650 Type Automatic Pneumatic |
| Category |
Carton Box Strapping Machine |
| Turntable Diameter |
1650mm |
| Packing Height |
1200~2000mm, Customizable |
| Turntable Height |
85mm |
| Turntable Weight Capacity |
2000kg, Customizable |
| Total Weight |
550kg |
| Total Power |
1.5kw |
| Supply Voltage |
220V,380V, Customizable |
| Turntable Speed |
6~16Circle/Min |
| Film Material |
LLDPE |
| Film Thickness |
17~35um |
| Film Width |
500mm |
| Film Roll Core Inner Diameter |
76.2mm |
| Film Roll Core Outer Diameter |
150~350mm |
Our company
Product packaging
FAQ:
Q1: How is the warranty of the machine?
A: Warranty period: 12 months from the shipping date of machine. Warranty will be not valid if machine subject to misuse or accidental damage or operator's error. During the valid time, we will supply spare parts. If you have any other questions, Kindly contact us and we will reply you through product's photos and videos to make every detail clear.
Q2: How about the after-sale service?
A: 1) TM online 24 hours, also contact by email, skype, wechat, whatsapp, etc.
2) To solve the problems with videos/pictures.
3) One year warranty for spare parts change.
Q3: Is it safe on the payment for me as we are the first cooperation?
A: We can do the trade assurance on Alibaba, which will guarantee your products receiving, we also accept other safe payment way as you want.
Q4: What is your minimum order quantity, can you send me samples?
A: Our minimum quantity is 1 set, as our product is machinery equipment, it is difficult to send you samples, if you have any questions about the products, please feel free to contact us for more detail, we are glad to provide you more information such as specifications, video, etc.
