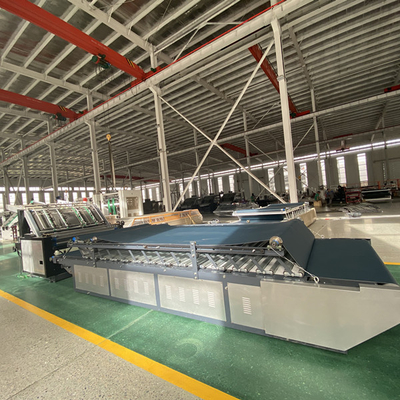

Manufacturer Semi-Automatic Paper Flute Laminating Machine For Corrugated Brand New
The new type flute laminator machine adopt double frequency conversion at the front and back of the machine, automatic gluing,automatic washing gears, Photoelectric alignment, screw attached pressing, vacuum adsorption bottom paper, labour feeding paper, whole machine 8.8m, mainframe 3m, pressure transfer platform 5m, paper receiving platform1.2m, 28 pressure rollers, 6 positioning belt, 1 synchronous belt, 3 Synchronous wheel, 14 paper pressing wheel, transfer platform is Stainless steel double bridge stander, wheelbase adjustment bar adopts pressure bearing, worm wheel adjustment transmission shaft is double dis double bearing and balance processing, all the main equipment parts adopt famous manufacturer from domestic and foreign, long original product life long, good stability, and ensure the reliability of electrical components in the using process.
Main specification
| Model | 1300 | 1400 | 1500 | 1600 |
| Max feeding size | 1300x1250mm | 1400x1250mm | 1500x1250mm | 1600x1250mm |
| Min feeding size | 360x360mm | 360x360mm | 360x360mm | 360x360mm |
| Speed | 0-100 pcs/min | 0-100 pcs/min | 0-100 pcs/min | 0-100 pcs/min |
| Laminating precision | +/-1 | +/-1 | +/-1 | +/-1 |
| Power | 6kw | 6.5kw | 6.5kw | 6.5kw |
| Size | 8.8x1.95x1.7m | 8.8x2.05x1.7m | 8.8x2.15x1.7m | 8.8x2.25x1.7m |
| Weight | 3t | 3.5t | 3.5t | 3.5t |
