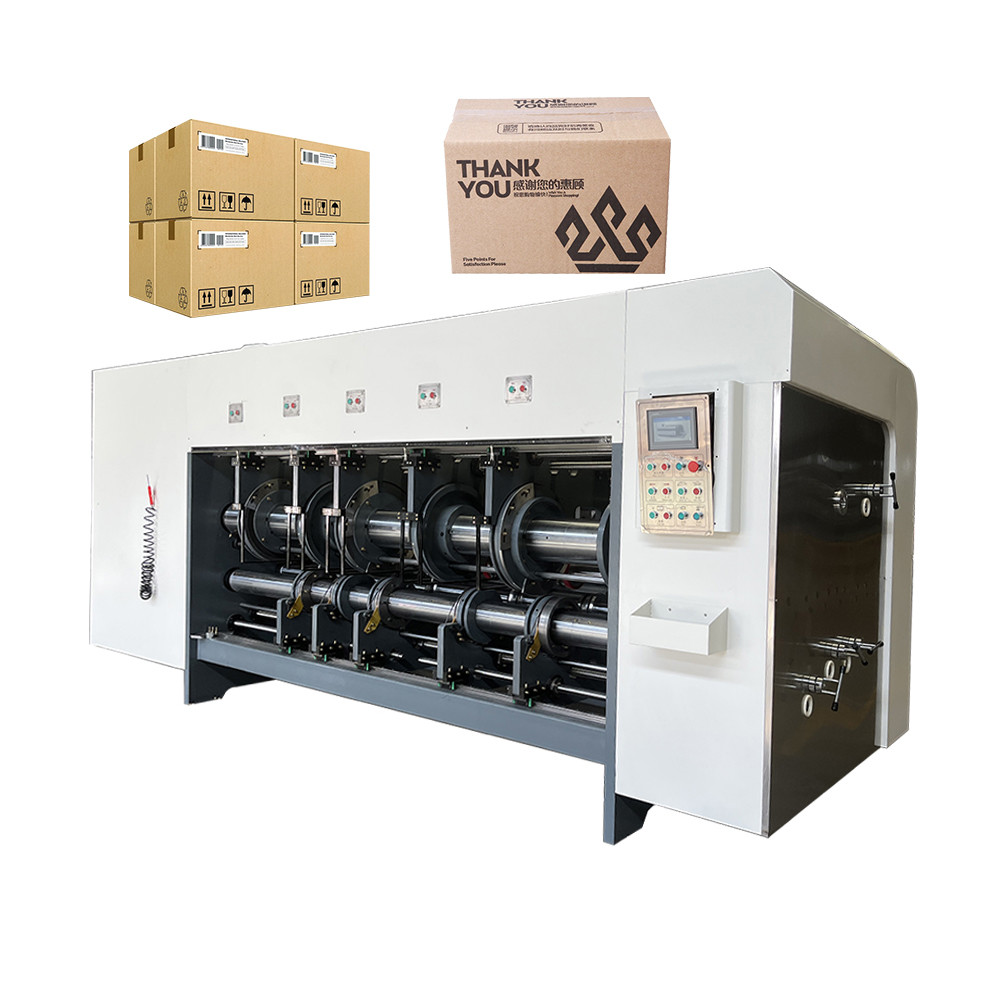

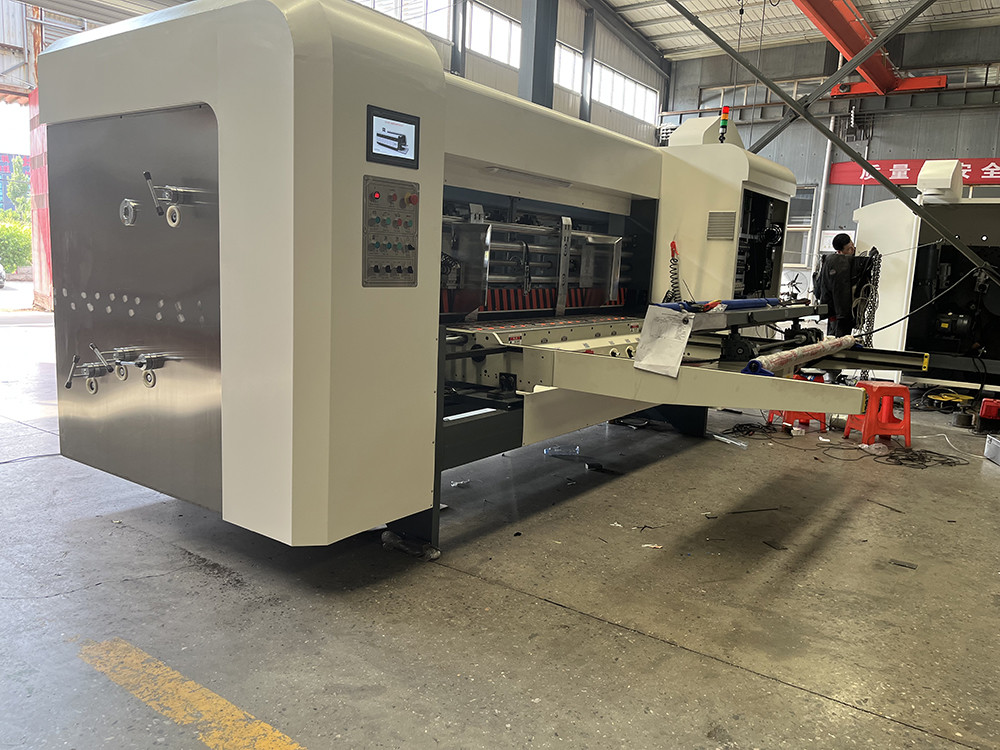

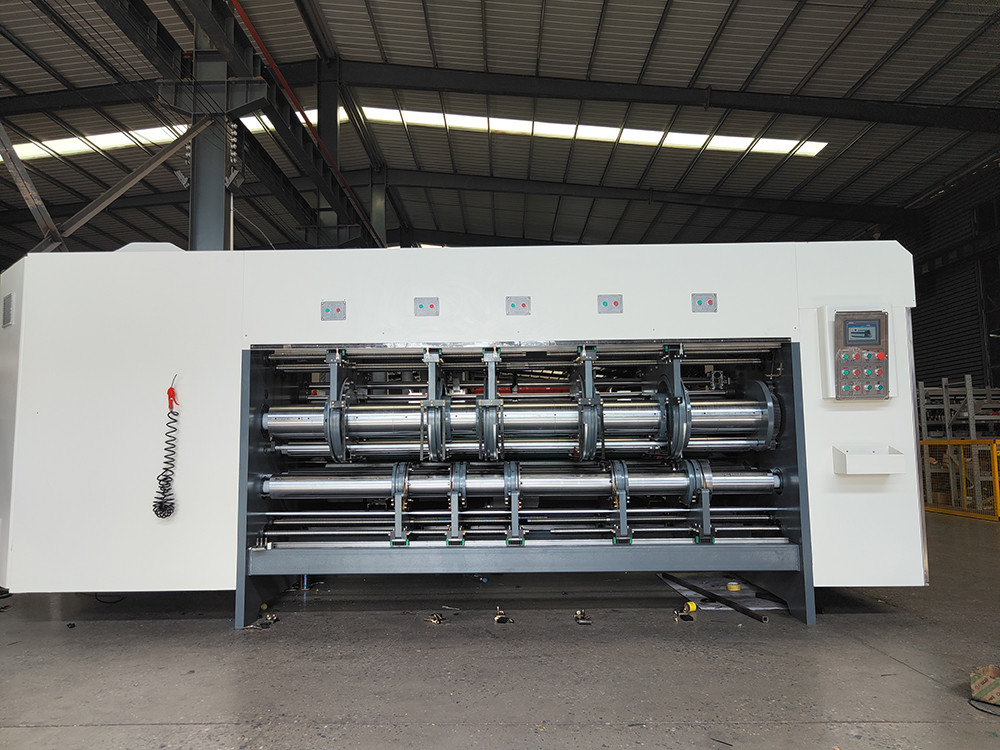

2508SE Electric Corrugated Cardboard Slotting Cutting Machine
| Description |
BM2508-SE is a multi-functional carton processing equipment, mainly used for the production of small batches and multiple styles of corrugated boxes. The equipment adopts HMI and PLC control mode, fully automatic knife adjustment, and integrates leading edge paper feeding, slotting touch line, thin knife slitting, vertical and horizontal crimping, and truly realizes one-stop processing from cardboard to carton. It provides solutions for various customized packaging needs, and is widely used in many fields such as furniture, bathroom, hardware accessories, e-commerce logistics, etc.
Equipment advantages:
(1) The installation is simple, and the production can be started after being connected to the electricity and gas after landing;
(2) Stable paper feeding: automatic paper feeding with pressure-free adsorption front edge;
(3) Accurate feeding size: using servo motor and dual sensor positioning,
The error does not exceed one thousandth;
(5) Carton processing without burrs: the paper is divided by a thin knife slitting method, tungsten steel
The tool rotates actively, sharp and wear-resistant;
(6) The carton size range that can be processed is large (the paper feed door width is 2500mm, and the length is not limited);
(7) The operation is completed through the HMI man-machine interface, the size input is completed in 10-20 seconds, and the adjustment is completed in about 30 seconds.
(8) Carton adding in one step: slotting, slitting, cross-cutting, vertical pressing line, horizontal pressing line and other functions are completed at one time.
| Parameters |
| Applicable cardboard | Single piece of corrugated paper (single tile, double tile) |
| Applicable cardboard thickness | 2-10mm |
| Use cardboard weight | ≤1200g/m² |
| Maximum paper feed size | 2500mm wide * infinite length |
| Minimum paper feed size | 200mm wide * 650mm long |
| Change order time | About 30 seconds |
| Standard box type | More than 50 kinds (if the theory is feasible, it can be increased according to customer needs) |
| Production capacity | 7~8 per minute, |

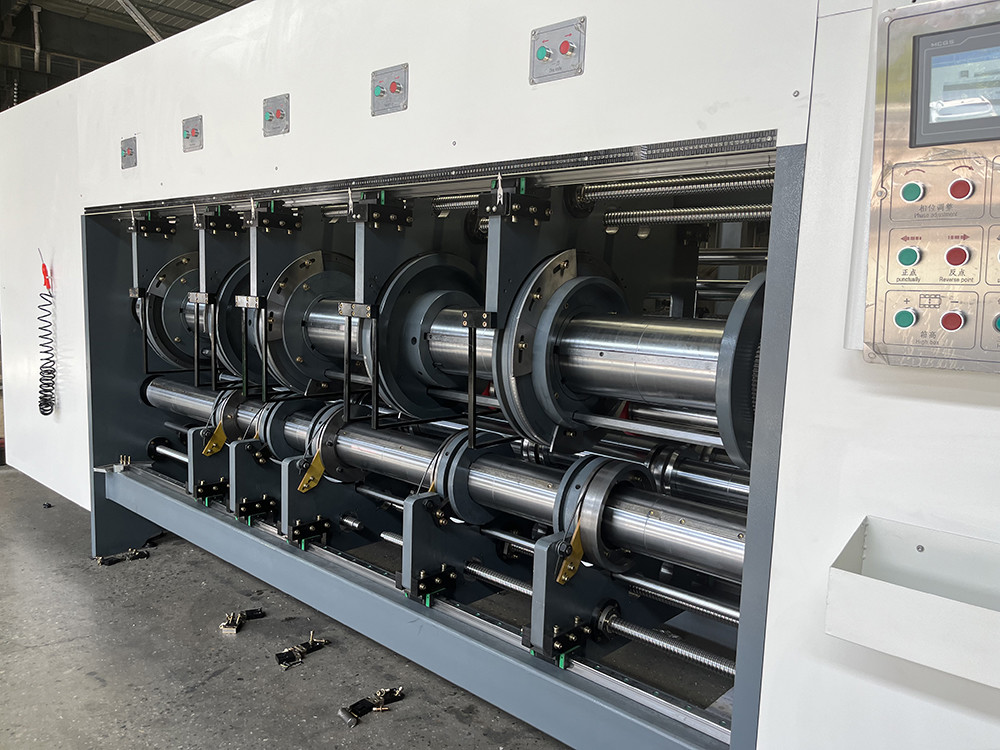

| Standard slotting knife | 2 pieces of 500mm long slotting knife |
| Number of slitting knives | 4 slitting knives |
| Number of crimping knives | 4 longitudinal crimping knives |
| Number of cross-cutting knives | 1 cross cutter |
| power supply | BM2508-SE 380V±10%, Max. 7kW, 50/60 Hz |
| Gas source | 0.6-0.7MPa |
| Overall size | 3350(W) * 1800(L)* 2000mm(H) |
|
Total Weight |
Appr.3000Kg |

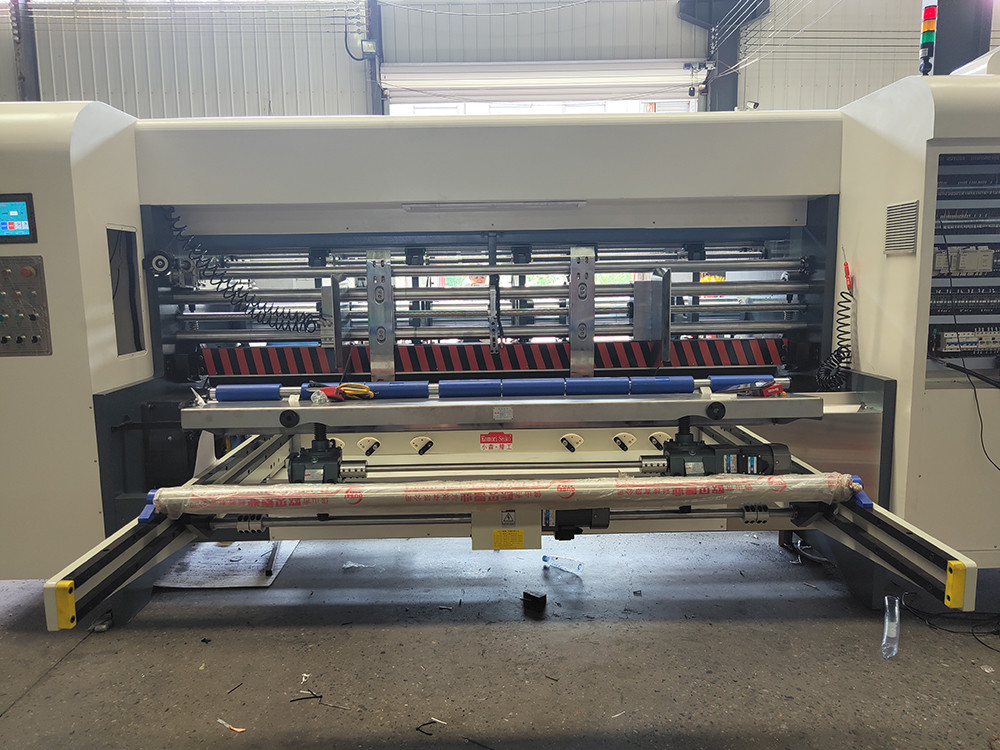

| Paper feed module | Leading edge feed |
| Portable hole function | support |
| Air consumption | 40L/Min |
| Packing and Shipping |
1. Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road.
2. Transportation and various types of weather conditions. A full set of maintenance and operation.
3. Manuals is included.
