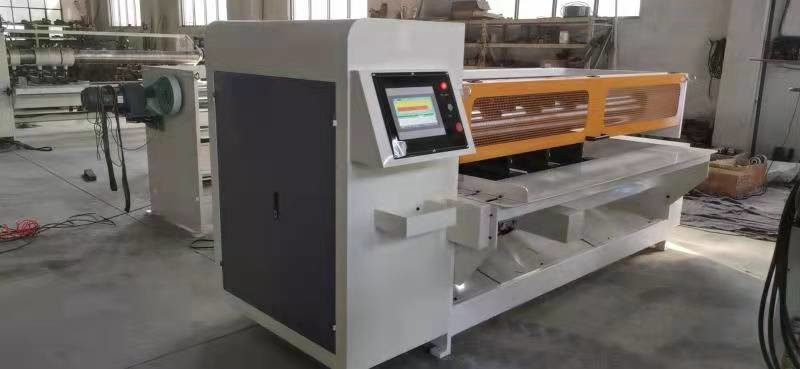

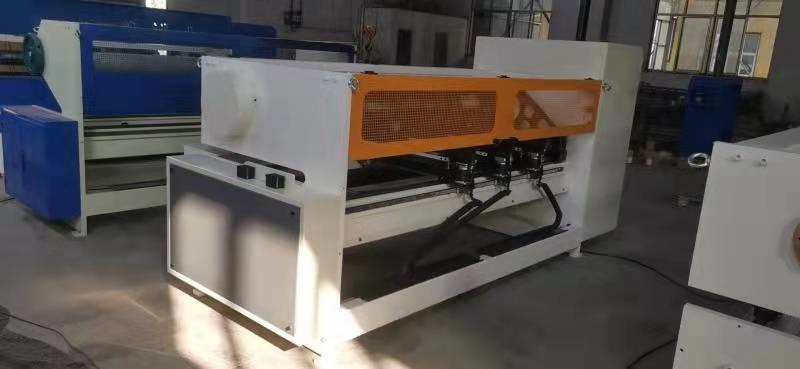

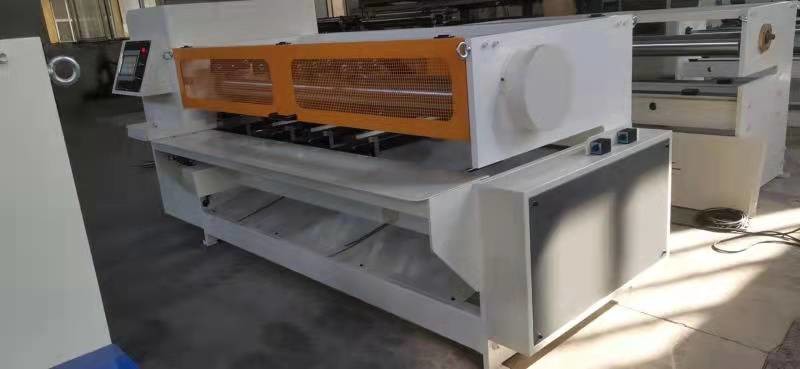

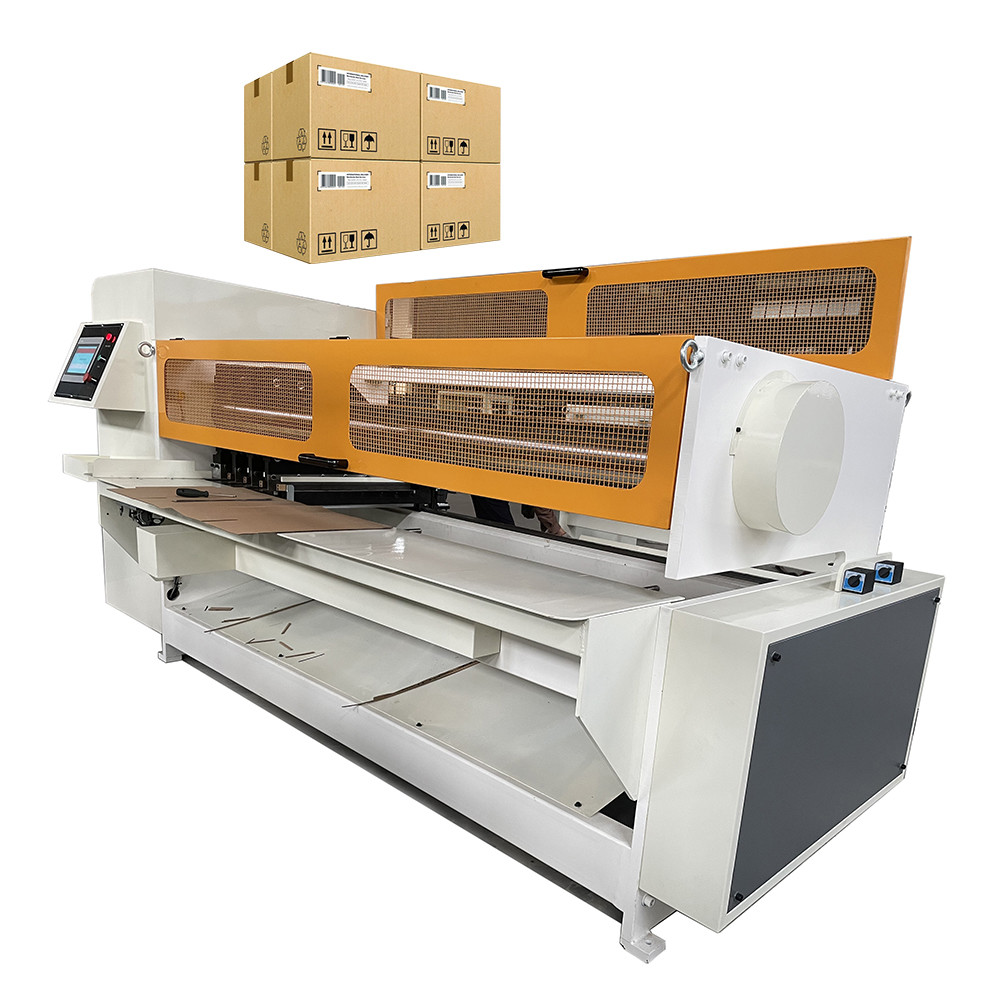

2508SE Electric Corrugated Cardboard Slotting Cutting Machine
| Description |
The 2000mm model four links machine is used to slitting and corner-cutting every kind carton packaging box before binding. It is operate conveniently, accurate cutting and beautiful, it is the perfect machine in the carton production line.
Operating Principle
This machine is driven by normal motor, and working by belt pulley and gear transmit the crankshaft connecting rod system. It finish the slitting and corner-cutting function by the drive of the knife installed on the upper knife holder and to carry out the upper and down cutting.
| Parameters |
| Model | QJ 2000 |
| Max.Paperboard size | 2000 mm |
| Slitting size | 7.5*350 mm |
| Slitting knife NO. | 3 |
| Corner cutting size | 0-60 *350 mm |
| Speed | 40 times/min |
| Power | 1.5 kw |
| Machine size (mm) | 2250*1170*1500 |
| Machine weight | 1000 kg |
| Packing and Shipping |
1. Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road.
2. Transportation and various types of weather conditions. A full set of maintenance and operation.
3. Manuals is included.
