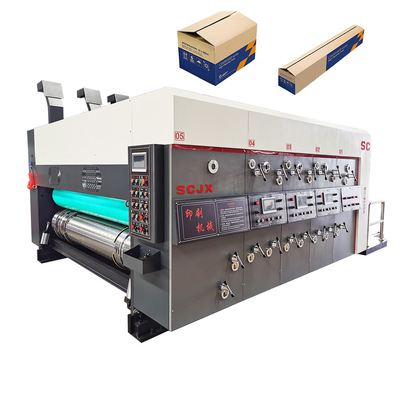

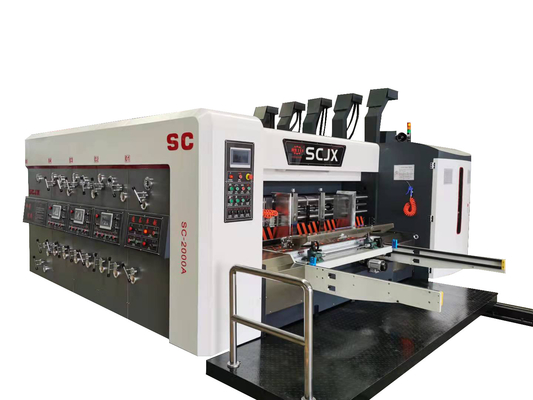

Name: 1628 Four Color High Speed Corrugated Cardboard Printing Slotting and Die Cutting Machine
Brand: Cangzhou Gerun Machinery Co.,Ltd
SKU: 1628
Price: 125000.00 USD
Availability: InStock

1628 Four Color High Speed Corrugated Cardboard Printing Slotting and Die Cutting Machine

1 sets

MOQ

To be negotiated

Price

Features Gallery Product Description Request A Quote

Features

Specifications

Warranty: 1 Year

Type: Automatic

Speed: 130m/min

Condition: New

After-sales Service Provided: Online Support,Video Technical Support

Usage: Heated Platen Heating, Glue Paste

Color: White,Black

Packaging Type: Plastic, Wood

Highlight:

1628 Corrugated Cardboard Printing Slotting Machine

Basic Infomation

Place of Origin: Hebei,China

Brand Name: GR

Certification: CE,ISO

Model Number: 1628

Payment & Shipping Terms

Packaging Details: Wooden case packaging(optional) or well packed plastic film packaing

Delivery Time: 30-60days

Payment Terms: L/C, T/T, Western Union

Supply Ability: 10 sets/month

Gallery

1628 Four Color High Speed Corrugated Cardboard Printing Slotting and Die Cutting Machine

Product Description

1628 Four Color High Speed Corrugated Cardboard Printing Slotting and Die Cutting Machine

Description

1628 Four Color High Speed Corrugated Cardboard Printing Slotting and Die Cutting Machine 0

1. The electric appliances of the whole machine adopt the product of SCHNEIDER made in FRANCE (optional).

2. Straight gear drive.The gears are after high frequency quenching and grinding.

3. All the rollers are plated with chromium to encrease their hardness.

4. Spray circulated oil lubrication.

5. Return to zero and adjust printing plate automatically.

6. Module-designed. Multicolor printing sections can be combined as your requests.

7. The side baffle of feeder and slotter are all adjusted electrically.

8. PLC, touch screen and frequency-variable controller are adopt,accurate and reliable.

1628 Four Color High Speed Corrugated Cardboard Printing Slotting and Die Cutting Machine 1

Parameters

Working speed	130 pic/min
Max feeding board size	1600*2800 mm
Min feeding board size	450*850 mm
Maximum printing area	1600*2800 mm
Standard plate thickness	3.2-7.2 mm
Adapted paperboard thickness	3-12 mm
Printing precision	±0.5 mm
Slotting precision	±1.5 mm
Die cutting precision	±1.5 mm

Packing and Shipping

1. Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road.

2. Transportation and various types of weather conditions. A full set of maintenance and operation.

3. Manuals is included.

Our Services

1628 Four Color High Speed Corrugated Cardboard Printing Slotting and Die Cutting Machine 3

1628 Four Color High Speed Corrugated Cardboard Printing Slotting and Die Cutting Machine 4
