1800 Model Thin Blade Slitter Scorer Machine For Production Line
| Introduction |
1. Adopt electric lifting type change scorer height,Using adapt cardboard height.
2. The orders can be changed quickly with the two machines.
3. Patent type passive grinding,compact structure,automatic and manual two kinds grinding,can work while sharpening,improve work efficiency.
4. Using the synchronous belt transmission,low noise.
5. Adopt high quality tungsten steel blade,sharp and long work-life.
6. Electric left-right rectification 200mm fuction to cooperate the position of paper sheet.
| Parameters |
| Model | 1800 | 2000 | 2400 |
| Max slitting size(mm) | 1650 | 1850 | 2250 |
| Min slitting size(mm) | 130 | ||
| Min scorer width(mm) | 30 | ||
| Scorer height(mm) | 0-12 | ||
| Blade size(mm) | 260*158 | ||
| Blade/scorer | 4/6, 5/8, 6/10, 7/12 | ||
| Machine dimension(mm) |
2930*1230*1870 |
3130*1230*1870 |
3030*1120*1400 |
| Power(kw) | 5.5 | 5.5 | 7.5 |

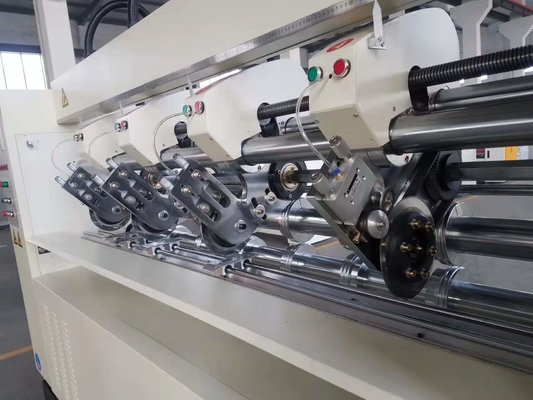

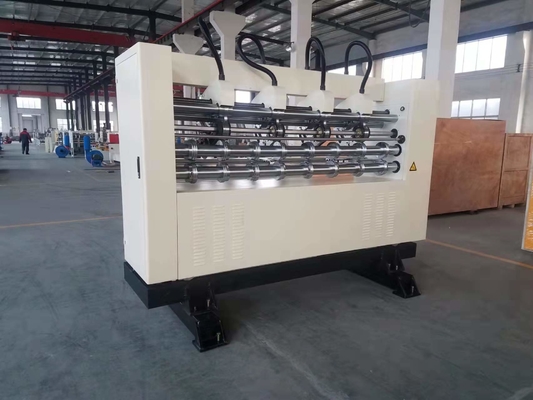

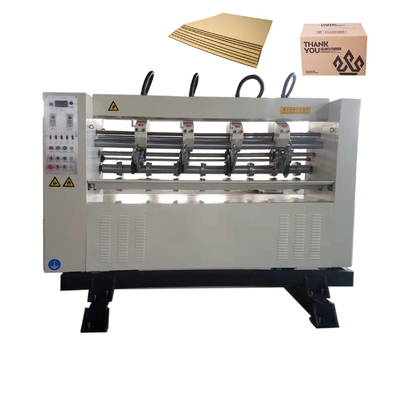

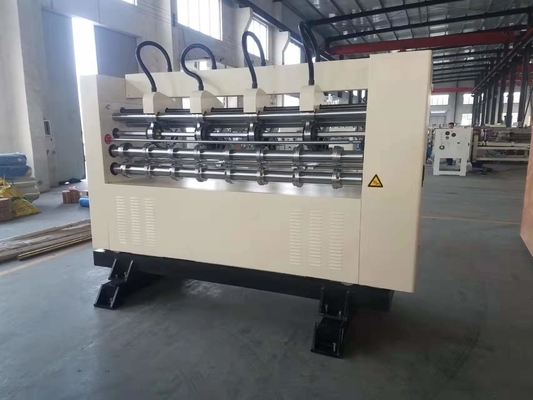

| Detailed Images |
| Packing and Shipping |
1.Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions.
2. A full set of maintenance and operation manuals is included.
|
| Our Services |
1. We provide whole establish new factory solution,give customer a comprehensive design plant idea, consider the target customer market. We own a great team,engineer service to oversea country is available.
2. We provide loan to below business situation:
1) Use first.
2) Payer later.
3) Special service.
We can provide financial support for your project.
Mutual trust is the foundation of our business.
3. After-Sales Service
1) Engineers available to service machinery overseas.(including installation,debugging,training etc.
2) Whole machine main parts guarantee for 1 year.
3) 25 years experience,reply within 12 hours,provide solve solution within 24 hour.
