Corrugated Cardboard Box 2500 Thin Blade Slitter Scorer Electric Driven

1 sets

MOQ

To be negotiated

Price

Corrugated Cardboard Box 2500 Thin Blade Slitter Scorer Electric Driven

Features Gallery Product Description Request A Quote

Features

Specifications

Condition: New

Driven Type: Electric

Type: Packing Machine

After-sales Service Provided: Engineers Available To Service Machinery Overseas,Overseas Service Center Available,Video Technical Support,Free Spare Parts,Online Support

Warranty: 2 Years

Speed: 80-180m/min

Product Name: Corrugated Carton Box Making Machine Thin Blade Slitter Scorer

Function: Slitter The Corrugated Cardboards,For Cardboard Slitting Scorer,Slitter Scorer Cardborad,Corrugated Paperboard Making Machine

High Light:

2500 thin blade slitter scorer

,

electric driven thin blade slitter scorer

,

electric driven thin blade slitter machine

Basic Infomation

Place of Origin: Hebei province,China

Brand Name: Gerun

Certification: CE,ISO

Model Number: 2500

Payment & Shipping Terms

Packaging Details: Wooden case packaging(optional) or well packed plastic film packaing

Delivery Time: 10-30days

Payment Terms: L/C, T/T, Western Union

Supply Ability: 30 sets/month

Gallery

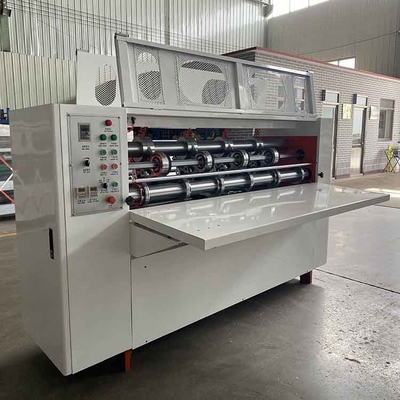

Corrugated Cardboard Box 2500 Thin Blade Slitter Scorer Electric Driven

Product Description

Corrugated Cardboard Slitter Scorer Machine/Corrugated Box Slitter Slotter

Introduction

Adopt front-scoring feeding, back double rubber roll leading paper, paperboard running steady.

Slitting Part: adopt high quality tungsten steel blade, sharp and long work-life, slice more tidy, non-pressing and non-burr.

Scoring Part: adopt 5 points scoring, scoring distance in-phase adjust, blazonry and easy to bend the carton sheet.

Electric control lift-down and correct error, easy to operate, suit for different requirements.

Adopt China famous brand or imported electric element, dependable performance.

Corrugated Cardboard Box 2500 Thin Blade Slitter Scorer Electric Driven 0

Parameters

Model		2000	2300	2500
Machine dimension(mm)		26007501400	29007501400	31007501400
Power		3.0kw	4.0kw	4.0kw
Max slitting width	Inverse blade	1900mm	2200mm	2300mm
Max slitting width	Positive blade	1800mm	2100mm	2200mm
Min slitting width	Inverse blade	305mm	305mm	305mm
Min slitting width	Positive blade	140mm	140mm	140mm
Min slitting length		435mm	435mm	435mm
Min scoring width	Positive scoring	30mm	30mm	30mm
Min scoring width	Inverse scoring	80mm	80mm	80mm
Scoring height		0-10mm	0-10mm	0-10mm
Blade(mm)		φ2001221.2	φ2001221.2	φ2001221.2
Blade & Scoring Composed Type		Three blade Four scoring/ Four blade Six Scoring/ Five Blades Eight scoring

Detailed Images

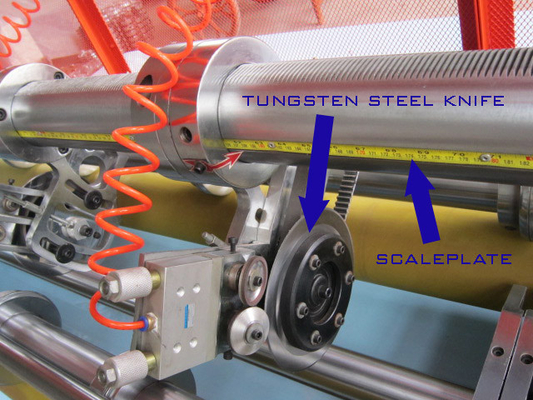

Corrugated Cardboard Box 2500 Thin Blade Slitter Scorer Electric Driven 1

Packing and Shipping

Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road

transportation and various types of weather conditions. A full set of maintenance and operation

manuals is included.

Our Services

Corrugated Cardboard Box 2500 Thin Blade Slitter Scorer Electric Driven 3

Factory

Corrugated Cardboard Box 2500 Thin Blade Slitter Scorer Electric Driven 4

Corrugated Cardboard Box 2500 Thin Blade Slitter Scorer Electric Driven 6
