PE Semi Automatic Box Making Packing Belt Carton Tying Bundle Strapping Machine
| Introduction |
1) PE automatic strapping machine mainly used in the field of carton,corrugated paper,paper box,
color box and color printing industry,replace the process of strapping by hand,reduce labor cost
largely,this machine only need one person to operate.
2) Suitable usage: strapping the carton,corrugated paper,paperboard,paperboard the big size
material ect, as well as newspaper,book,and clothes.
3) Quick speed,save the labor,save time and easy to operate.
4) High efficiency: economical, reduce the packing cost to create the profit
5) Adopt electronic(or mechanic)control,the function is steady,power is small,only need 3 kilo-watt
for 1 day work
Features:
1. Fast speed, provincial labor, labor-saving, easily operate.
2. High efficiency,affordable economy, reduce packaging cost, create profit
3. Adopt mechanical (or electronic) control, stable performance,small power, only three degrees of electricity a day, strong and durable, easily maintain.
4. The cartons are strong in structure, some parts are imported from Taiwan, and the whole machine is refined with the national standard
5. Tie the knot in a quick 1 second knot
6. Bundled form: 360 degree automatic, 1-2 laps, easily operate, safe,easily boot
| Parameters |
| Model | SCS 70 | SCS 100 | SCS 120 |
| Max Bundling Scope(mm) | 700*500 | 1000*600 | 1200*800 |
| Min Bundling Scope(mm) | 150*80 | 200*160 | 400*200 |
| Deep User Desktop(mm) | 240 | 320 | 320 |
| Speed(second/knob) | 1.2 | 1.2 | 1.3 |
| Total Power(kw) | 0.37 | 0.55 | 0.55 |
| Voltage(V) Single phase | 220 | 220 | 220 |
| Machine size(L*W*H) mm | 1300*950*1500 | 1550*1160*1620 | 1750*1200*1700 |
| Weight (kgs) | 160 | 180 | 210 |

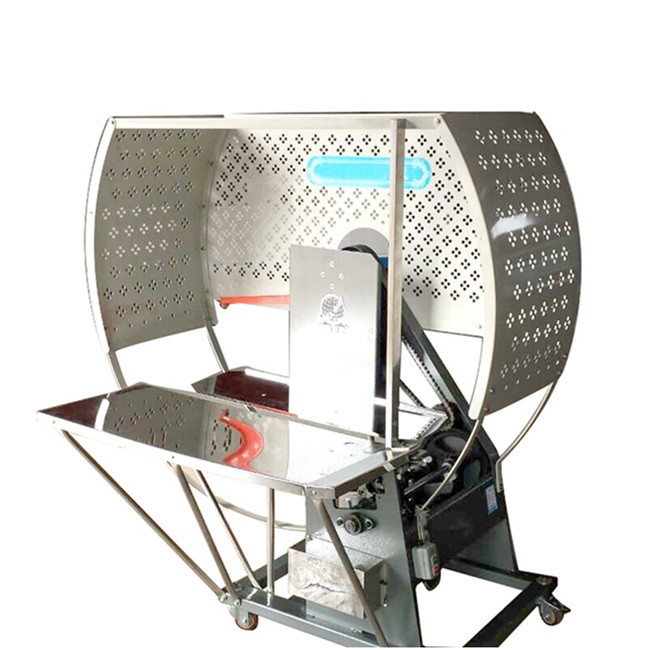

| Detailed Images |
|
|
| Packing and Shipping |
Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road
transportation and various types of weather conditions. A full set of maintenance and operation
manuals is included.
|

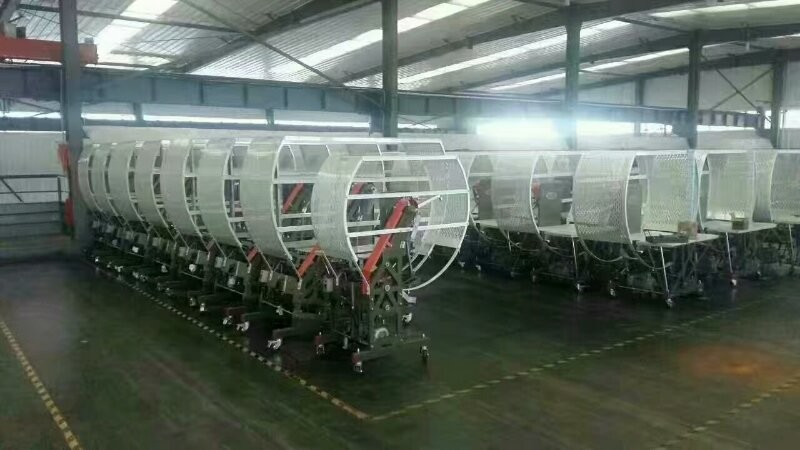

| Factory |
|
|
