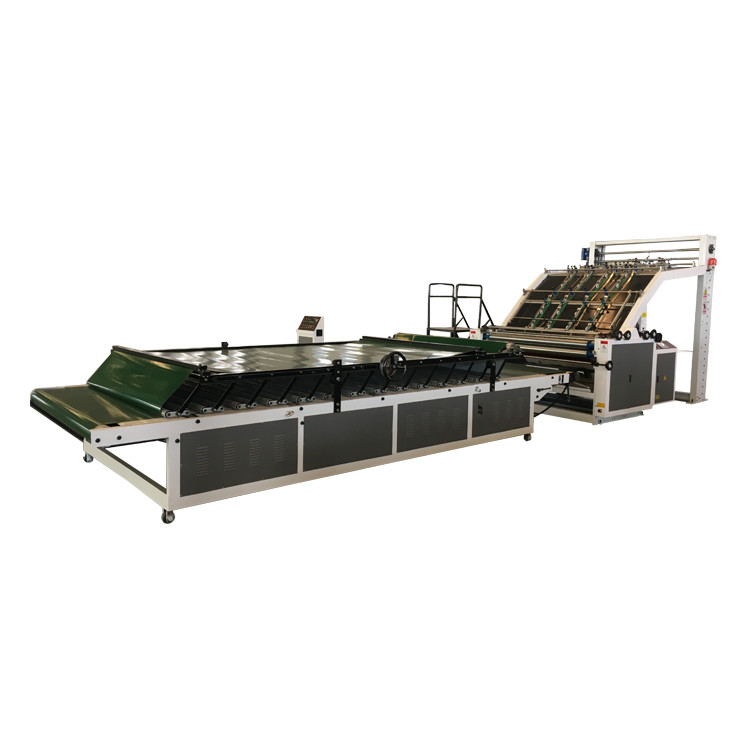

Name: Plc Auto Grade Flute Lamination Pasting Machine High Accuracy
Brand: Cangzhou Gerun Machinery Co.,Ltd
SKU: 1650
Price: 4,251.00 USD
Availability: InStock

Plc Auto Grade Flute Lamination Pasting Machine High Accuracy

1 sets

MOQ

To be negotiated

Price

Features Gallery Product Description Request A Quote

Features

Specifications

Automatic Grade: Automatic

Type: Flute Lamination Pasting Machine

Size: 1650x1450mm

Speed: 7000pcs/hour

Warranty: 12 Months

Name: Auto Grade Flute Lamination Pasting Machine

Highlight:

plc flute lamination pasting machine

auto grade flute lamination pasting machine

high accuracy auto flute laminator machine

Basic Infomation

Place of Origin: Hebei province,China

Brand Name: IPACK

Certification: CE,ISO

Model Number: 1650

Payment & Shipping Terms

Packaging Details: Wooden case packaging(optional) or well packed plastic film packaing

Delivery Time: 30 days

Payment Terms: L/C, T/T, Western Union

Supply Ability: 20 sets/month

Gallery

Plc Auto Grade Flute Lamination Pasting Machine High Accuracy

Product Description

Plc Auto Grade Flute Lamination Pasting Machine High Accuracy

Introduction

This flute lamination pasting machine is used for the lamination of top colorized sheets and bottom corrugated paper.

The flute lamination pasting machine features simple operation, less maintenance, high speed and lamination precision.

Parameters

Model	Max Size	Min Size	Power	Lamination Speed	Speed for Top Sheet	Weight	Machine Size
AL-1300	1300×1250mm	400×400mm	10kw	0-153m/min	7000 Sheets/min	5000kg	11.5×2.0×2.4m
AL-1450	1450×1250mm	400×400mm	11kw	0-153m/min	7000 Sheets/min	5500kg	11.5×2.2×2.4m
AL-1650	1650×1450mm	400×400mm	12kw	0-153m/min	7000 Sheets/min	6000kg	11.5×2.4×2.4m
Top Paper Sheet: 150-600GSM, Bottom Board: A/B/C/E/F Corrugated Carton Thickness less than 8mm

Packing and Shipping

Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road

transportation and various types of weather conditions. A full set of maintenance and operation

manuals is included.
