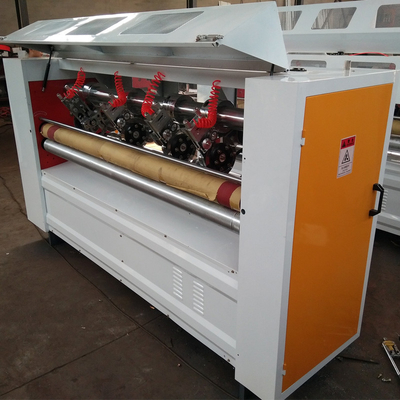

Electric Corrugated Sheet Carton Box Thin Blade Slitter Scorer Slitting Machine

1 sets
MOQ
To be negotiated
Price
Electric Corrugated Sheet Carton Box Thin Blade Slitter Scorer Slitting Machine
Features Gallery Product Description Request A Quote
Features
Specifications
Condition: New
Driven Type: Electric
Type: Packing Machine
After-sales Service Provided: Engineers Available To Service Machinery Overseas,Overseas Service Center Available,Video Technical Support,Free Spare Parts,Online Support
Warranty: 2 Years
Speed: 80-180m/min
Product Name: Corrugated Carton Box Making Machine Thin Blade Slitter Scorer
Function: Slitter The Corrugated Cardboards,For Cardboard Slitting Scorer,Slitter Scorer Cardborad,Corrugated Paperboard Making Machine
Voltage: 220V/380V
Packaging Type: Film
Color: Customised
Highlight:

Thin Blade Slitter Scorer

,

Thin Blade Slitter Scorer

,

slitter scorer machine

Basic Infomation
Place of Origin: Hebei province,China
Brand Name: IPACK
Certification: CE,ISO
Model Number: 2000
Payment & Shipping Terms
Packaging Details: Wooden case packaging(optional) or well packed plastic film packaing
Delivery Time: 10-30days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 30 sets/month
Product Description

Carton Making Machine Corrugated Cardboard Thin Blade Slitter Scorer Machine Price

Introduction



paper feeder system:

Manual feeder or automatic feeder

The number of blade:

Four knives and six lines

Five knives and eight lines

Six knives and ten lines

Knife adjustment method :

Manual adjustment

Electric adjustment


Electric Corrugated Sheet Carton Box Thin Blade Slitter Scorer Slitting Machine 0

Main features:

1. Adopt electric adjust blade distances, pneumatic lock. Improve degree of automation, easy to operate

and high precision, save time and labor.

2. Slitting part: adopt high quality tungsten steel blade, sharp and long working life, slice tidier, non-pressing

and non-burr.

3. Scoring part: adopt 5 points scoring, scoring distance in-phase adjustment, blazonry and easy to bend the

carton sheet.

4. Grinding part: adopt automatic and manual pneumatic grinding type. It can grind while working, which can

improve working efficiency.

5. Electric control lifting-down and correct error, easy to operate and suitable for different requirements.

6. Adopt Chinese famous brand or imported electric element, dependable performance.

Parameters



Model 2000 2300 2600
Machine dimension(mm) 2600*750*1400 2900*750*1400 3200*750*1400
Motor power 3 4 4
Max slitting width(mm) Inverse 1900 2200 2500
  Positive blade 1800 2100 2400
Min slitting width(mm) Inverse 305 305 305
  Positive blade 140 140 140
Min slitting length(mm) 435 435 435
Min scoring width(mm) Positive scoring 30 30 30
  Inverse scoring 80 80 80
Scoring height(mm) 0-10 0-10 0-10
Blade(mm) φ200×122×1.2
Slitting scoring composed type Three blade Four scoring/Four blades Six scoring/Five blade Eight scoring



Detailed Images
Electric Corrugated Sheet Carton Box Thin Blade Slitter Scorer Slitting Machine 1

Main transmission is leather belt .Low noise and durable.
Motor adjust by Electromagnetic , smooth and steady work.

Knife thickness only 1 mm.Edge smoothed,after Slitting. non-pressing,and the line smooth.



With scaleplate :
When it worked , Can adjust the size ,Easy and convenient operation

Electric Corrugated Sheet Carton Box Thin Blade Slitter Scorer Slitting Machine 2
Electric Corrugated Sheet Carton Box Thin Blade Slitter Scorer Slitting Machine 3

Pneumatic rod support the safety net.When it open, Whole electric cut off.
alarm lamp and lamp inside safety net light, Sufficient lighting at night.

Adopt hard press soft . Apply to all kinds of paperboard .Creasing difficult to rip.

The edge keep straight.

Prepressing function :
In order to Keep the paperboard non-rip , Prepressing the paperboard advance .So that can Achieve the best result of creasing .

Electric Corrugated Sheet Carton Box Thin Blade Slitter Scorer Slitting Machine 4
Packing and Shipping

Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road

transportation and various types of weather conditions. A full set of maintenance and operation

manuals is included.

3
Our Services
Our Service

Q: 1.Are you a manufacturer, trading company or a third party?

A:We are a manufacturer, [Cangzhou Shengchuan Machinery Manufacturing Co.,Ltd] located in Xiaoxing Industrial zone,south of Dongguang county, Hebei province, China. Warmly welcome to visit our company.

Q: 2. What is your minimum order quantity, can you send me samples?

A:Our minimum quantity is 1 set, as our product is machinery equipment, it’s difficult to send you samples, if you have any questions about the products, please feel free to contact us for more detail, we are glad to provide you more information such as specifications, video, etc.

Q: 3. How does your factory do regarding quality controlling?

A: (1) All raw material we used are environmental-friendly.

(2) Skillful workers care every details in handling the producing and packing process.

(3) Quality control department are specially responsible for quality in each process.

We have been kept providing high quality products by introducing advanced technologies for over 20 years, and our products are also widely exported to many different countries including Russia, the Middle East, Africa, Southeast Asia, EU, etc, which earned us a high reputation among the customers.

Q: 4.What is the delivery time of your machine?

A:In general, the delivery time of our machine is about 30 days, customized machine will be delivered as the negotiation with our clients.

Q: 5.How about the after-sale service?

A: (1) TM online for 24 hours, also contact by email, skype, MSN, whatsapp, etc.

(2) To solve the problems with videos/pictures.

(3) One year warranty for spare parts change.
