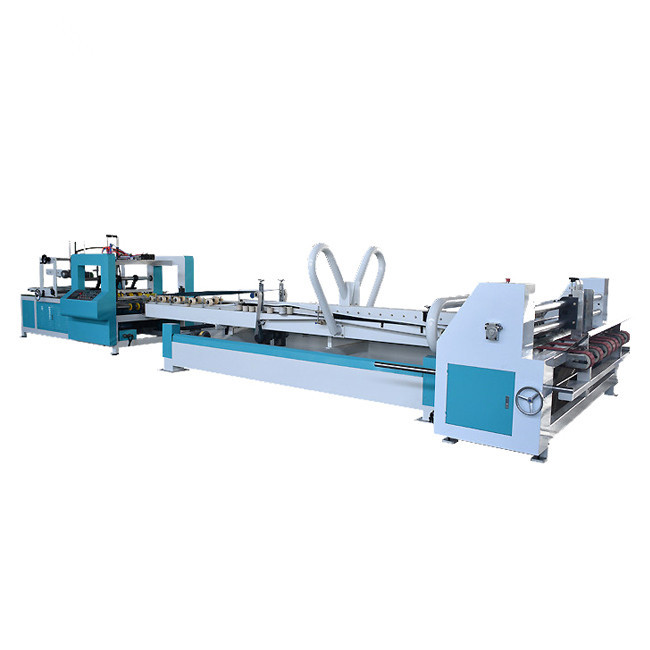

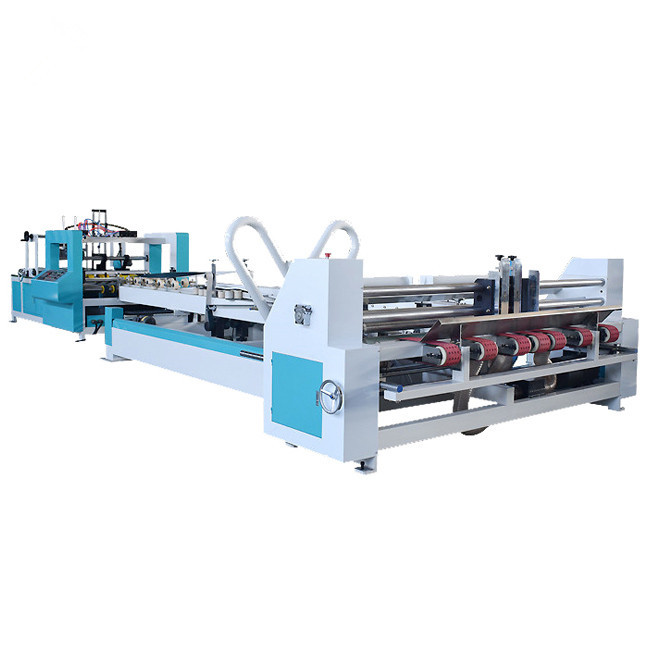

Automatic Corrugated Folding Carton Gluers Forming Machine

1 sets
MOQ
To be negotiated
Price
Automatic Corrugated Folding Carton Gluers Forming Machine
Features Gallery Product Description Request A Quote
Features
Specifications
After-sales Service Provided: Video Technical Support,Online Support,Free Spare Parts,Engineers Available To Service Machinery Overseas,Field Maintenance And Repair Service
Condition: New
Warranty: 1 Year
Usage: Corrugated Carton Box Folding Gluing
Adjustment: Touch Screen
Driven Type: Electric
Automatic Grade: Automatic
Product Name: Folder Gluer Machine,corrugated Board Box Automatic Carton Box Folder Gluer
Function: Gluing Corrugated Carton Board,Carton Box Forming Machine,For Carton Box Folding Gluing,gluer Box
Name: Corrugated Carton Folder Gluer Machine,Folder Gluer
Highlight:

Automatic folding carton gluers

,

Corrugated folding carton gluers

,

Automatic corrugated forming machine

Basic Infomation
Place of Origin: Hebei province,China
Brand Name: IPACK
Certification: CE,ISO
Model Number: 2800
Payment & Shipping Terms
Packaging Details: Wooden case packaging(optional) or well packed plastic film packaing
Delivery Time: 30-60days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 10 sets/month
Product Description

Automatic Corrugated Carton Box Folder Gluer Auto Folding Forming Machine

Introduction



This automatic folder gluer machine consist of three sections: vacuum feeding section, gluing and folding section,

counter and stacker section. Frequency conversion motor with quality inverter adjust speed, PLS touch screen control

system for easy operation and running stable. Average speed is 150sheets per/min. Energy conservation and high speed, Saving labor cost.


Automatic Corrugated Folding Carton Gluers Forming Machine 0

Parameters



Model FG2600 FG2800 FG3000
Max cardboard size 1200×2400 1200×2600 1200×2800
Min cardboard size 170*450 170*450 170*450
Dimension L12500×W3000×H1600 L12500*W3200*H1600 L12500*W3400*H1600
Motor power 10kw 12kw 12kw
Machine weight 5500kg 6500kg 7500kg
Application board thickness 3layer or 5layer

Detailed Images



Automatic Corrugated Folding Carton Gluers Forming Machine 1

Feeding section

1: Vacuum suction feeding to feed warping paperboard easily.

2: Quality electromagnetic clutch and brake adopted, feeding section is controlled independent, operation easily.

3: Scorer wheel adjustable, suit for 2-8mm thick paperboard.

4: Second creasing struction can impress again the paperboard which was not creased well.

Gluing and Folding section

1: Simple structure and high reliability, glue quantity adjustable, cleaning easily.

2: Stainless steel glue wheel adopted, long life and saving glue cost.

3: Improved quality rubber belt adopted, automatic folding.

4: with paperboard rectify device and creasing rectify device.

Automatic Corrugated Folding Carton Gluers Forming Machine 2
Automatic Corrugated Folding Carton Gluers Forming Machine 3

Counter and stacker section:

1: Stacking and counting are simple and reliable.

2: Digital control, operation easily and reliable, No-stop put in data and automatic counting.

3: With rectification function.

4: Paperboard counting and put out by pneumatic, stable and quickly.



Packing and Shipping

Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road

transportation and various types of weather conditions. A full set of maintenance and operation

manuals is included.

3
Our Services
Our Service



Q: 1.Are you a manufacturer, trading company or a third party?

A: We are a manufacturer, [Cangzhou Shengchuan Machinery Manufacturing Co.,Ltd] located in Xiaoxing Industrial zone,south of Dongguang county, Hebei province, China. Warmly welcome to visit our company.

Q: 2. What is your minimum order quantity, can you send me samples?

A: Our minimum quantity is 1 set, as our product is machinery equipment, it’s difficult to send you samples, if you have any questions about the products, please feel free to contact us for more detail, we are glad to provide you more information such as specifications, video, etc.

Q: 3. How does your factory do regarding quality controlling?

A: (1) All raw material we used are environmental-friendly.

(2) Skillful workers care every details in handling the producing and packing process.

(3) Quality control department are specially responsible for quality in each process.

We have been kept providing high quality products by introducing advanced technologies for over 20 years, and our products are also widely exported to many different countries including Russia, the Middle East, Africa, Southeast Asia, EU, etc, which earned us a high reputation among the customers.

Q: 4.What is the delivery time of your machine?

A: In general, the delivery time of our machine is about 30 days, customized machine will be delivered as the negotiation with our clients.

Q: 5.How about the after-sale service?

A: (1) TM online for 24 hours, also contact by email, skype, MSN, whatsapp, etc.

(2) To solve the problems with videos/pictures.

(3) One year warranty for spare parts change.
