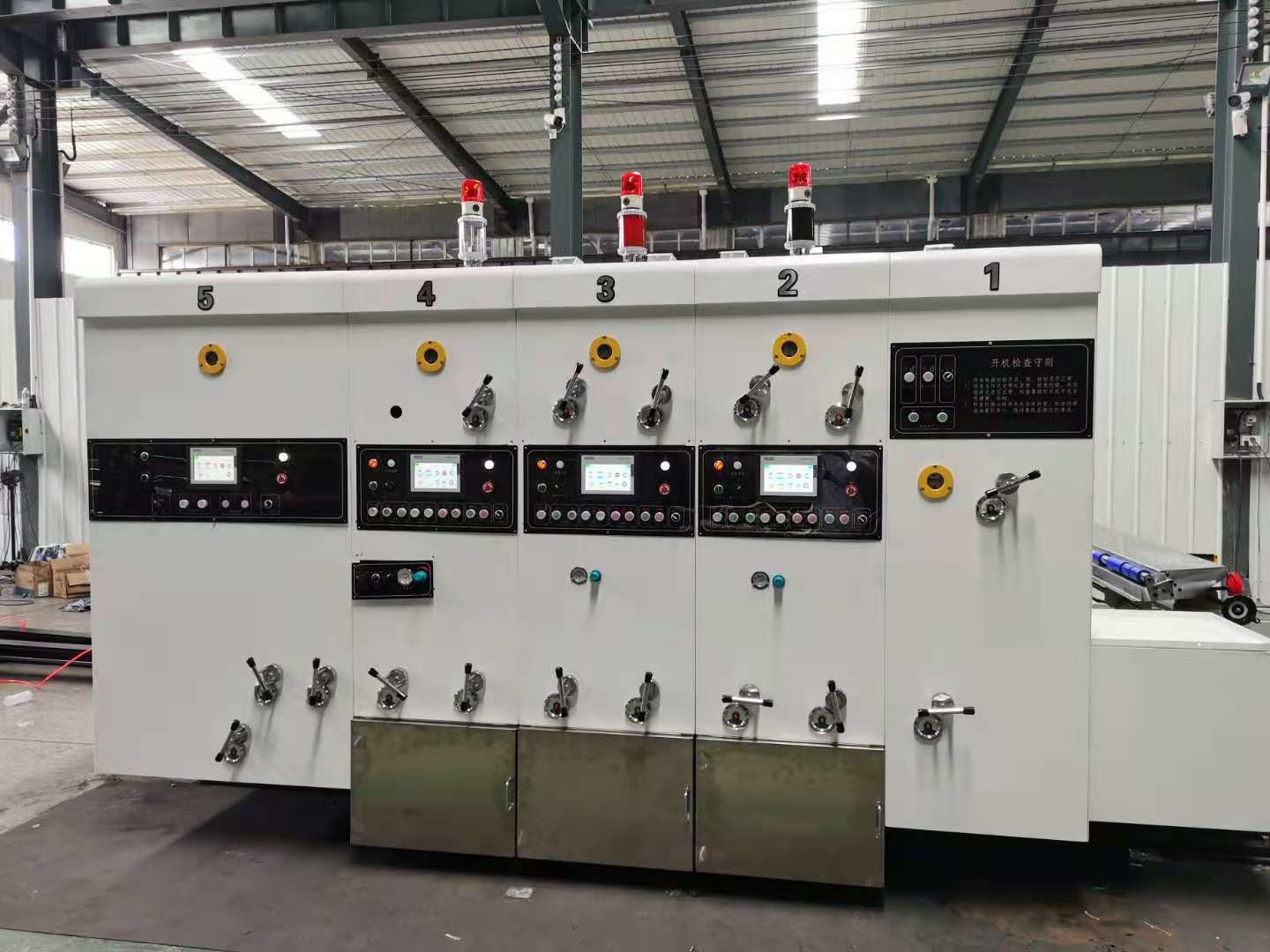

Flexo Printer Slotter Die Cutter Machine For Corrugated Boxes

Flexo Printing Slotting Die Cutting Machinery Corrugated Carton Printing Slotting Machine

Printer Slotter Die Cutter Characteristic:

1.Fast cleaning up ink system within 3 minutes

2.Low residual ink.

3.Fast hanging plate within 15 seconds

4.High productivity for small orders with setup times within 2 minutes.

5.Corrugated carton flexo printing machine running cost is reduced by energy conservation in electric power 170KVA

6.Each unit is individually driven by a servomotor.

7.High folding accuracy that meets every customer’s demands.

Flexo Printer Slotter Specification:

Maximum machine speed:275 sheet/min

Maximum sheet size (RSC):1210×2700mm

Minimum sheet size (RSC):290×755mm

Minimum gluer bridge size:360mm

Maximum sheet size (no folding):1210×1600mm

Minimum sheet size (no folding):290×650mm

Maximum width of sheet not folded:2000mm

Maximum printing area:1100×2600mm

Maximum film length:1210mm

Guide joint width:35mm

Minimum box height:50mm

Required power:120KW

Approx. Weight: 82,000KG

Flexo Printer Slotter Machine Advantages:

1.CNC control system. (Intelligent Control)

2.Independent Servo motor Drive in Each Unit. (High Speed and Energy Saving)

3.Fast Change Order within Two Minutes, Fast Change Printing Plate within 15 Seconds. Able to change 40-150 orders each day. (High Efficiency)

4.Fast Clean ink within three minutes, lower residual ink.

1. Lead edge feeding type.

2. Vacuum absorption assist paper feeding ensure stable high-speed operation. The air volume can be adjusted according to the camber of the paperboard.

3. Front baffle can be electrically adjusted with scale on it, easily understood. Side baffle can be adjusted electrically, with digital setting and pneumatic appliance.

4. Clutch of the machine is controlled electrically with alarm.

5. Equipped with brust to sufficiently eliminate dust and scraps as well as foreign substances on the printing surface improve printing quality.

6. Skip feeding device with continuous feed or spacing feed options.

7. Pneumatic interlocking mechanism. Equipped with dust clean device for the printing side of the paperboard and improve the printing quality.

8. PLC touch screen. Lower failure and higher efficiency, and is easy to learn and operate.

9. The main machine and fan motor applies transducer speed regulation,stable and energy saving.

1. Q: Are you a factory or trading company?

A: We are manufacturer. Cangzhou Shengchuan Machinery Manufacturing Co.,Ltd.

2. Q: Where is your company located? How can I visit there?

A: Our company is located in Dongguang County,Cangzhou City,Hebei Province. You can find us by searching in Google.We are near from Beijing/Tianjin city, only need 2/4 hours,We can arrange car to pick up from airport or hotel.

3. Q: Do you have any working machine for us to visit?

A: Yes,We can arrange visiting for you to any our customer factory in China.

4. Q: How is the warranty of the machine?

A: Our machines have ONE YEAR WARRANTY. And the engineers available for overseas service.

Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation

and various types of weather conditions. A full set of maintenance and operation manuals is included.

We deeply know that, excellent and efficient after-sales service is an indispensable part for clients to achieve due benefits. To offer most favourable and satisfactory service for wide clients, we hereby solemnly promise:

1. professional technicians will be assigned to client's site to give guidance in equipment installation and commissioning and hole training class for operators;we also offer charge-free training in our company for operators and maintenance personnel if requsted by clients.

2. The equipment will be delivered accompanied with detailed installation and operation manual and related information. Upon client's request,we can also offer plant layout design by free of charge.

All the equipment are offered with one year quality warranty. within the warranty period, maintenance of equipment and replacement of wearing parts are charge-free.After the guarantee is expired, we offer long-term maintenance service and supply of parts and components at cost price. Clients Complaint: A special round-clock fax will receive your complaints seriously. We will response within 24 to 48 hours after receiving your complaints by phone call or going to site.
