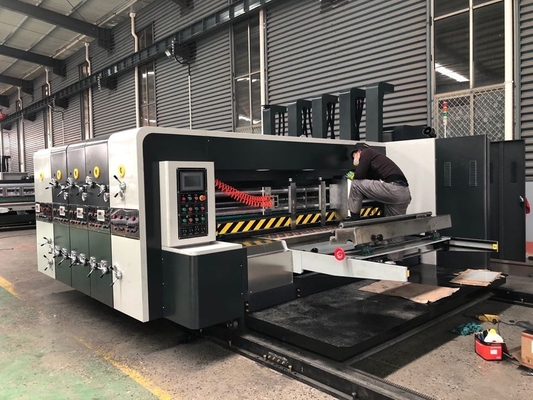

Custom Automatic Flexo Printing Machine Four Color With Die Cutter

4 Colour Flexo Printing Machine With Die Cutter Corrugated Box Printer Custom Box Printer Machine

Paper feeder

1. Vacuum adsorption assisted back kick feeding system is used to adjust suction according to different size of cardboard. The cardboard is adsorbed on the feeding table to smooth the cardboard into the printing department.

2. Electric adjustment of side gear position, fast, accurate and convenient adjustment

3. Paper feeding rollers are wrapped with wear-resistant rubber and balanced. Paper feeding rollers are embossed and plated with hard chromium.

4. There is a production quantity setting device without manual counting. When using the automatic zero-return device, two sheets can be adjusted to the correct position to reduce the waste of cardboard.

5. Dust removal with brush can remove magazines on cardboard and improve printing quality.

6. The function of the control panel is concise and centralized, and the operation is convenient.

Printing Department

1. Using hanging plate printing system, the plate-changing operation is convenient, and pedal switch is installed to facilitate hanging plate.

2. The circumferential adjustment mechanism of printing drum adopts planetary gear structure, and the hardness of the tooth surface reaches HRC58-60.

3. Printing phase adopts frequency converter, touch screen control and electric digital 360 degree adjustment (operation, stop state can be adjusted). Inking roll adopts high precision hard chromium wear resistant mesh roll.

4. Rubber rollers are coated with wear-resistant rubber on the surface of steel pipes. The ink transfer effect is good after medium and high special grinding.

1. Lead edge feeding type.

2. Vacuum absorption assist paper feeding ensure stable high-speed operation. The air volume can be adjusted according to the camber of the paperboard.

3. Front baffle can be electrically adjusted with scale on it, easily understood. Side baffle can be adjusted electrically, with digital setting and pneumatic appliance.

4. Clutch of the machine is controlled electrically with alarm.

5. Equipped with brust to sufficiently eliminate dust and scraps as well as foreign substances on the printing surface improve printing quality.

6. Skip feeding device with continuous feed or spacing feed options.

7. Pneumatic interlocking mechanism. Equipped with dust clean device for the printing side of the paperboard and improve the printing quality.

8. PLC touch screen. Lower failure and higher efficiency, and is easy to learn and operate.

9. The main machine and fan motor applies transducer speed regulation,stable and energy saving.

1. Q: Are you a factory or trading company?

A: We are manufacturer. Cangzhou Shengchuan Machinery Manufacturing Co.,Ltd.

2. Q: Where is your company located? How can I visit there?

A: Our company is located in Dongguang County,Cangzhou City,Hebei Province. You can find us by searching in Google.We are near from Beijing/Tianjin city, only need 2/4 hours,We can arrange car to pick up from airport or hotel.

3. Q: Do you have any working machine for us to visit?

A: Yes,We can arrange visiting for you to any our customer factory in China.

4. Q: How is the warranty of the machine?

A: Our machines have ONE YEAR WARRANTY. And the engineers available for overseas service.

Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation

and various types of weather conditions. A full set of maintenance and operation manuals is included.

We deeply know that, excellent and efficient after-sales service is an indispensable part for clients to achieve due benefits. To offer most favourable and satisfactory service for wide clients, we hereby solemnly promise:

1. professional technicians will be assigned to client's site to give guidance in equipment installation and commissioning and hole training class for operators;we also offer charge-free training in our company for operators and maintenance personnel if requsted by clients.

2. The equipment will be delivered accompanied with detailed installation and operation manual and related information. Upon client's request,we can also offer plant layout design by free of charge.

All the equipment are offered with one year quality warranty. within the warranty period, maintenance of equipment and replacement of wearing parts are charge-free.After the guarantee is expired, we offer long-term maintenance service and supply of parts and components at cost price. Clients Complaint: A special round-clock fax will receive your complaints seriously. We will response within 24 to 48 hours after receiving your complaints by phone call or going to site.
