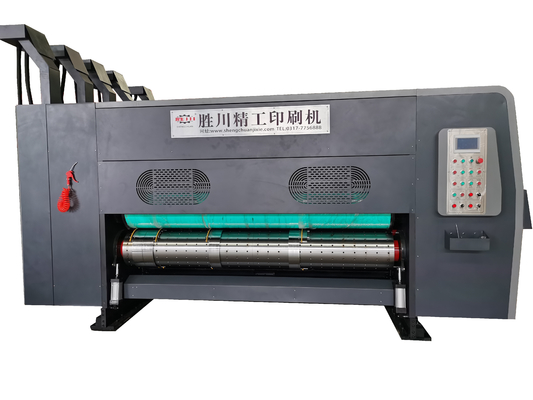

Box Printing Machine Corrugated Carton High Speed Printer Corrugated Box Print
| Introduction |
Box Printing Machine Corrugated Carton High Speed Printer Corrugated Box Print can produce
many kinds of corrugated carton box with multi-colors.
Such as RSC carton, Die-cutting cartons and so on.
1. Printing clear, accurate and easy operation.
2. Electric separation, automatic locking tightly.
3. Pneumatic positioning for separation which can ensure original adjusted size unchanged.
4. Pneumatic lifting of printing plate and automatic inking which can realize to ink when machine stop.
It eliminates the ink dry during the machine stop and affects the printing effect.
5. It adopts diaphragm pump which can adjust the ink flow to improve the evenness of inking.
6. Electronic counter can accurate counting the quantity of the printed paperboard.
7. Alarm bell device can improve the safety when the machine turns on.
8. Electric phase adjustment can realize 360 degree vertical adjustment for printing and slotting position
whatever machine run or stop. It can save time and improve the production efficiency.
9. Electric phase display device can make the machine with NC phase adjusting function.
10. The transmission gear adopts spray lubrication way which can reduce the noise and increase the gear service life.
11. Automatic shaft locking to make sure the printing accuracy.
12. Anilox roller: customer can choose the steel anilox roller or ceramic roller, the mesh according to customer demand.
| Parameters |
| Item | Instructions |
| Printing roller(Plate roller) |
〖i〗Outer diameter ￠ 405.6mm (including plate outer diameter ￠ 420mm) 〖ii〗High quality steel, surface grinding, hard chrome plating. 〖iii〗Making balance correction, and run smoothly. 〖iv〗Ratchet fixed reel shaft. 〖v〗The full version hanging groove is applicable to 10 mm × 3 mm hanging strip. 〖vi〗Loading and unloading printing plate, foot switch electric control forward and reverse. |
| Printing press roller |
〖i〗〖i〗The outer diameter is ￠ 176mm. 〖ii〗High quality steel, surface grinding, hard chrome plating. 〖iii〗Making balance correction, and run smoothly. 〖iv〗Printing pressure clearance dial display, quick wrench free adjustment, adjustment range 2-11mm. |
| Feeding upper and lower rollers |
〖i〗Upper roller: the outer diameter is ￠ 136 ㎜ thick wall high-quality seamless steel pipe, the surface is ground, and the paper ring is distributed. 〖ii〗Lower roll: the outer diameter is ￠ 149mm thick wall high-quality seamless steel pipe, the surface is ground and hard chrome plated. 〖iii〗The paper feeding roller gap dial is displayed, and the adjustment range is 2-11mm without spanner. |
| Steel anilox roller |
〖i〗The outer diameter is ￠ 212 ㎜. 〖ii〗The surface of thick wall high quality seamless steel pipe is grinded, with reticulated pattern pressed and hard chromium plated. 〖iii〗Making balance correction, and run smoothly. 〖iv〗Number of mesh are 200,220,250,280 according to your options 〖v〗With paper feeding system pneumatic automatic lifting device ( during paper feeding, the anilox roller descends to contact with the plate, and when paper feeding stops, the anilox roller rises to separate from the plate). 〖vi〗Anilox roller with wedge - block type overrunning clutch, easy to wash ink. 〖ii〗The clearance dial between anilox roll and printing plate roll is displayed, and the adjustment range is 4-8 mm without spanner. |
|
Ceramic anilox roll
|
〖i〗The outer diameter is ￠ 212 ㎜. 〖ii〗The surface of thick wall high quality seamless steel pipe is coated with ceramic grinding and laser engraving. 〖iii〗Mesh number is 280 ~ 600 mesh optional. 〖iv〗It is more delicate, wearable and durable than steel anilox roll. |
|
Scraper inking system
(optional)
|
〖i〗The innovative cavity fluid dynamics and ink sealing design of the closed scraper system can achieve better ink transfer effect and save ink. 〖ii〗Air pressure or cylinder adjustment lock, scraper wear automatic compensation, so that the anilox roll and scraper blade fit better, in order to obtain the best scraping effect. 〖vi〗Accurate scraping angle and mechanical accuracy. After changing the scraper, the position of the scraper can be kept constant to ensure the best scraping effect. 〖vii〗Adjustable and compensated sealing system, no need to shut down, ensure that the ink transfer system is completely sealed. 〖viii〗The adjustable sealing block can be directly attached to the anilox roller carving surface, without the need for smooth anilox roller at both ends. 〖ix〗The closed chamber is easy to load and unload without any auxiliary tools. |
|
Rubber roller
|
〖1〗The outer diameter is ￠ 195mm.
〖2〗Thick - walled seamless steel tube is coated with wear-resistant rubber and balanced. 〖3〗Special grinding of rubber roller, good ink transfer effect. 〖4〗Rubber roller and anilox roller clearance dial display, quick adjustment without wrench, adjustment range 2 ~ 11 mm. |
|
Phase adjusting mechanism |
〖1〗Planetary gear construction. 〖2〗The printing phase adopts PLC, touch screen control and electric digital 360 ° adjustment. (operation and stop can be adjusted) 〖3〗Electric digital adjustment lateral position, adjust the distance a total of 20 mm. 〖4〗Automatic reset system after plate cleaning during printing (eraser memory reset). |
| Ink circulation |
〖1〗Pneumatic diaphragm pump, stable ink supply, simple operation and maintenance. 〖2〗Ink screen, filter impurities. 〖3〗Stainless steel ink groove. |
| Printing phase fixing device |
〖1〗Cylinder brake mechanism 〖2〗When the machine is separated or the phase is adjusted, the brake mechanism restricts the rotation of the machine and keeps the original fixed point of the gear position. |
|
|
|
|
| Detailed Images |
1.Lead edge feeding type.
2.Vacuum absorption assist paper feeding ensure stable high-speed operation. The air volume can be adjusted according to the camber of the paperboard.
3.Front baffle can be electrically adjusted with scale on it, easily understood. Side baffle can be adjusted electrically, with digital setting and pneumatic appliance.
4. Clutch of the machine is controlled electrically with alarm.
5.Equipped with brust to sufficiently eliminate dust and scraps as well as foreign substances on the printing surface improve printing quality.
6.Skip feeding device with continuous feed or spacing feed options.
7.Pneumatic interlocking mechanism. Equipped with dust clean device for the printing side of the paperboard and improve the printing quality.
8.PLC touch screen. Lower failure and higher efficiency, and is easy to learn and operate.
9.. The main machine and fan motor applies transducer speed regulation,stable and energy saving.
