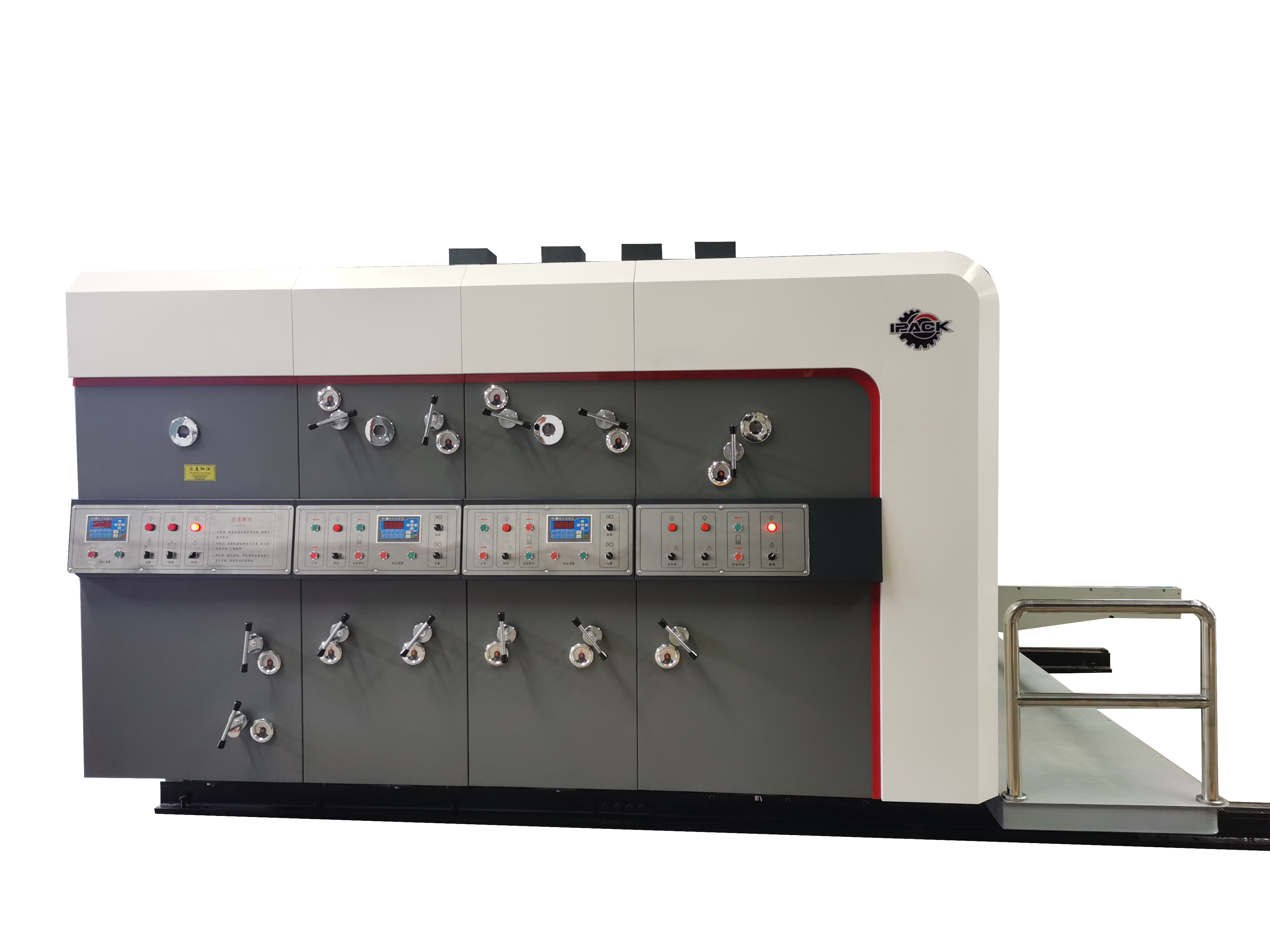

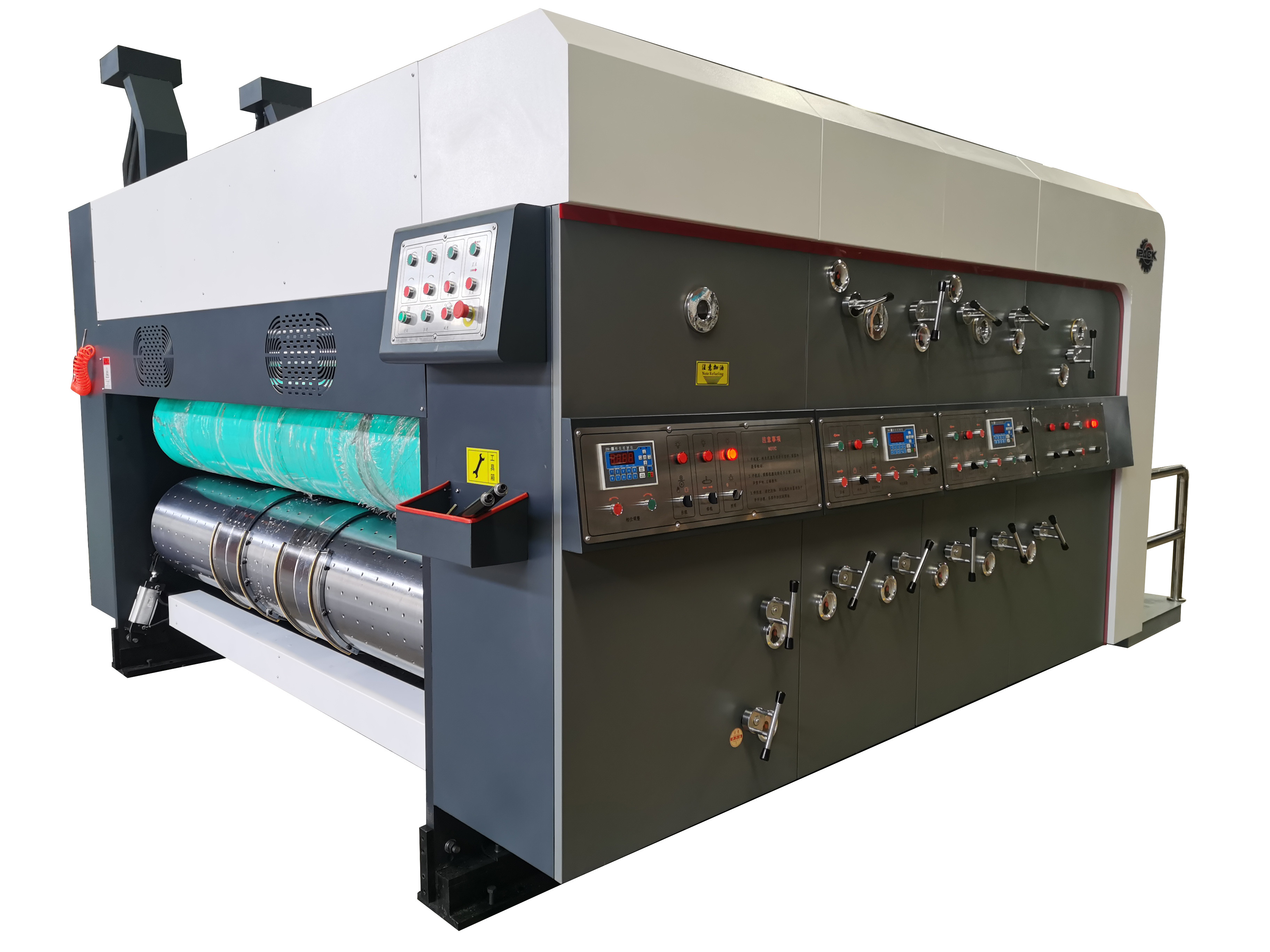

Flexo Printer Slotter Diecutter Stacker Machine Automatic Flexo Printing Slotting Machine
| Introduction |
Flexo Printer Slotter Diecutter Stacker Machine Automatic Flexo Printing Slotting Machine can
produce many kinds of corrugated carton box with multi-colors.
Such as RSC carton, Die-cutting cartons and so on.
Automatic Overturn Top Prefeeder Features:
1. This prefeeder is suitable to any type of top or bottom printing machine.
2. Intermediate warehouse ensures the sheets quantity required for the not stop production at the most high speed during the pile change.
3. Group provides the shingling of cardboard sheets ensuring perfect alignment through the two side joggers.
4. Group telescopic belts adjusting the length function of sheets board and ht is equipped with front joggers.
5. The area need to remove the pallet or sheets scrap,also allows a safe passage through the machine for operator.
| Parameters |
| Data Model | 2000 | 25000 | 3000 |
| Dimension | 2000 | 2500 | 3000 |
| A(mm) | 7500 | 8500 | 9500 |
| B(mm) | 3500 | 4000 | 4500 |
| C(mm) | 800 | 1600 | 1600 |
| E(mm) | 800 | 1600 | 1600 |
|
Speed(Box/H) Change pile(Sec) |
25000 22 |
20000 24 |
18000 26 |
|
|
|
|
| Detailed Images |
Designed according to the high request and the reliable function, the operation of the machine is
humanized.The moving motor with constant torsional moment which can buffer the impact of the
two units when the operation is wrong.
After all the units closed, each part is pneumatic locked. There is also lead locked cylinder which
can make each part locked with bottom-track lock. If the cylinder is not locked, the main motor
will not work.
Lead-edge adopts suction feeding system, air volume can be adjusted, main motor is controlled
by frequency conversion.
| FAQ |
1. Q: Are you a factory or trading company?
A: We are manufacturer. Cangzhou Shengchuan Machinery Manufacturing Co.,Ltd.
2. Q: Where is your company located? How can I visit there?
A: Our company is located in Dongguang County,Cangzhou City,Hebei Province. You can find us by searching in Google.We are near from Beijing/Tianjin city, only need 2/4 hours,We can arrange car to pick up from airport or hotel.
3. Q: Do you have any working machine for us to visit?
A: Yes,We can arrange visiting for you to any our customer factory in China.
4. Q: How is the warranty of the machine?
A: Our machines have ONE YEAR WARRANTY. And the engineers available for overseas service.
| Packing and Shipping |
Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation
and various types of weather conditions. A full set of maintenance and operation manuals is included.
|
| Our Services |
We deeply know that, excellent and efficient after-sales service is an indispensable part for clients to achieve due benefits. To offer most favourable and satisfactory service for wide clients, we hereby solemnly promise:
1.professional technicians will be assigned to client's site to give guidance in equipment installation and commissioning and hole training class for operators;we also offer charge-free training in our company for operators and maintenance personnel if requsted by clients.
2.The equipment will be delivered accompanied with detailed installation and operation manual and related information. Upon client's request,we can also offer plant layout design by free of charge.
All the equipment are offered with one year quality warranty. within the warranty period, maintenance of equipment and replacement of wearing parts are charge-free.After the guarantee is expired, we offer long-term maintenance service and supply of parts and components at cost price. Clients Complaint: A special round-clock fax will receive your complaints seriously. We will response within 24 to 48 hours after receiving your complaints by phone call or going to site.
| Factory |
| Installed in Our Customer's Factory |
