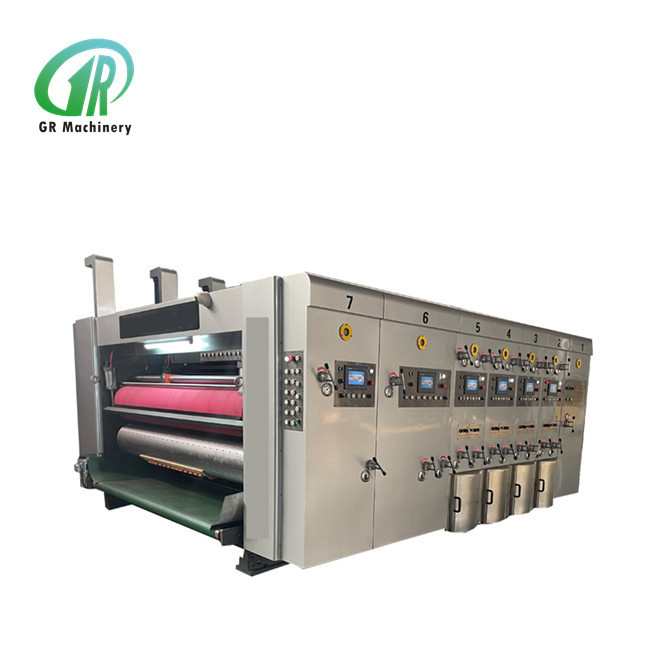

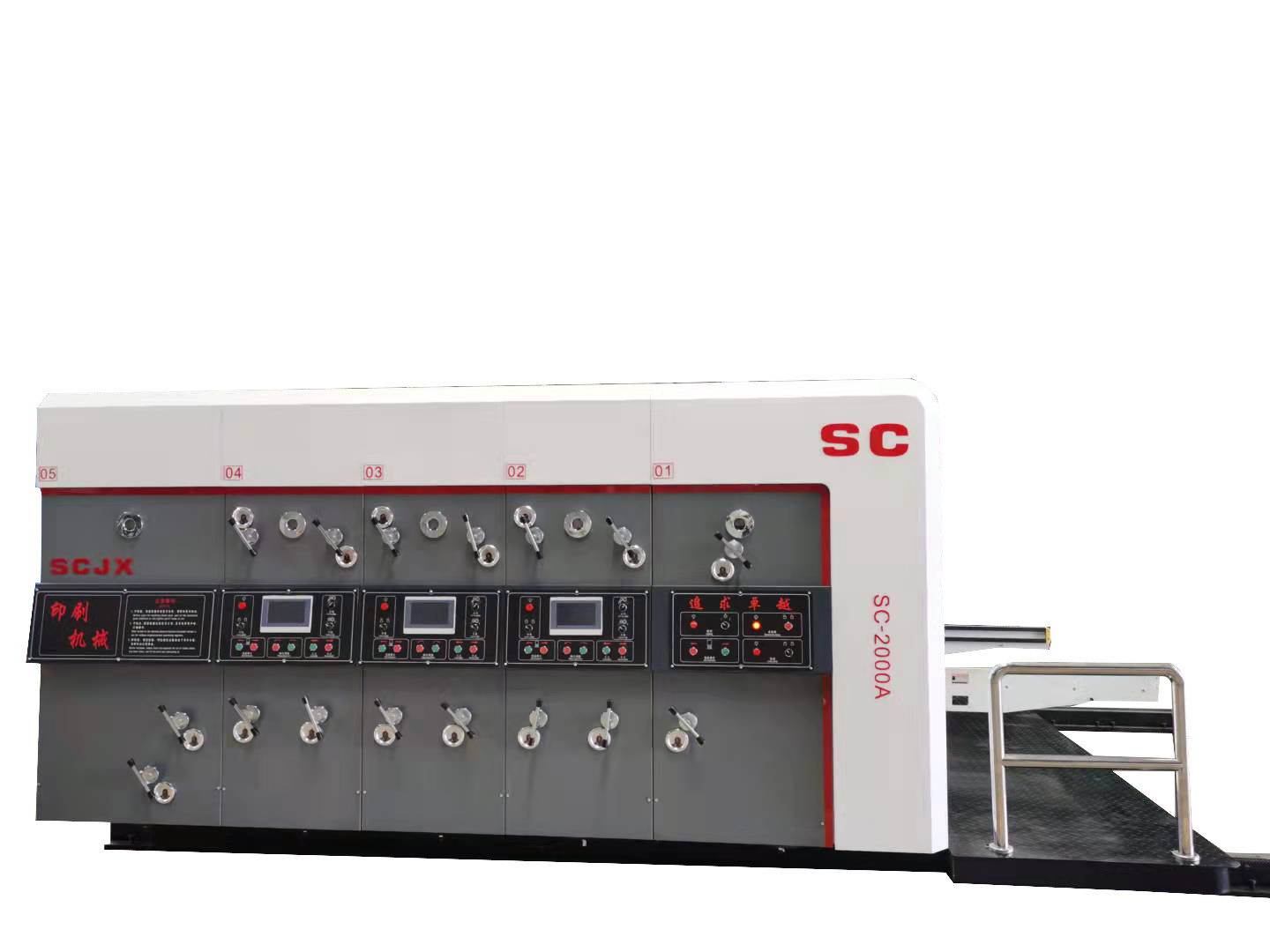

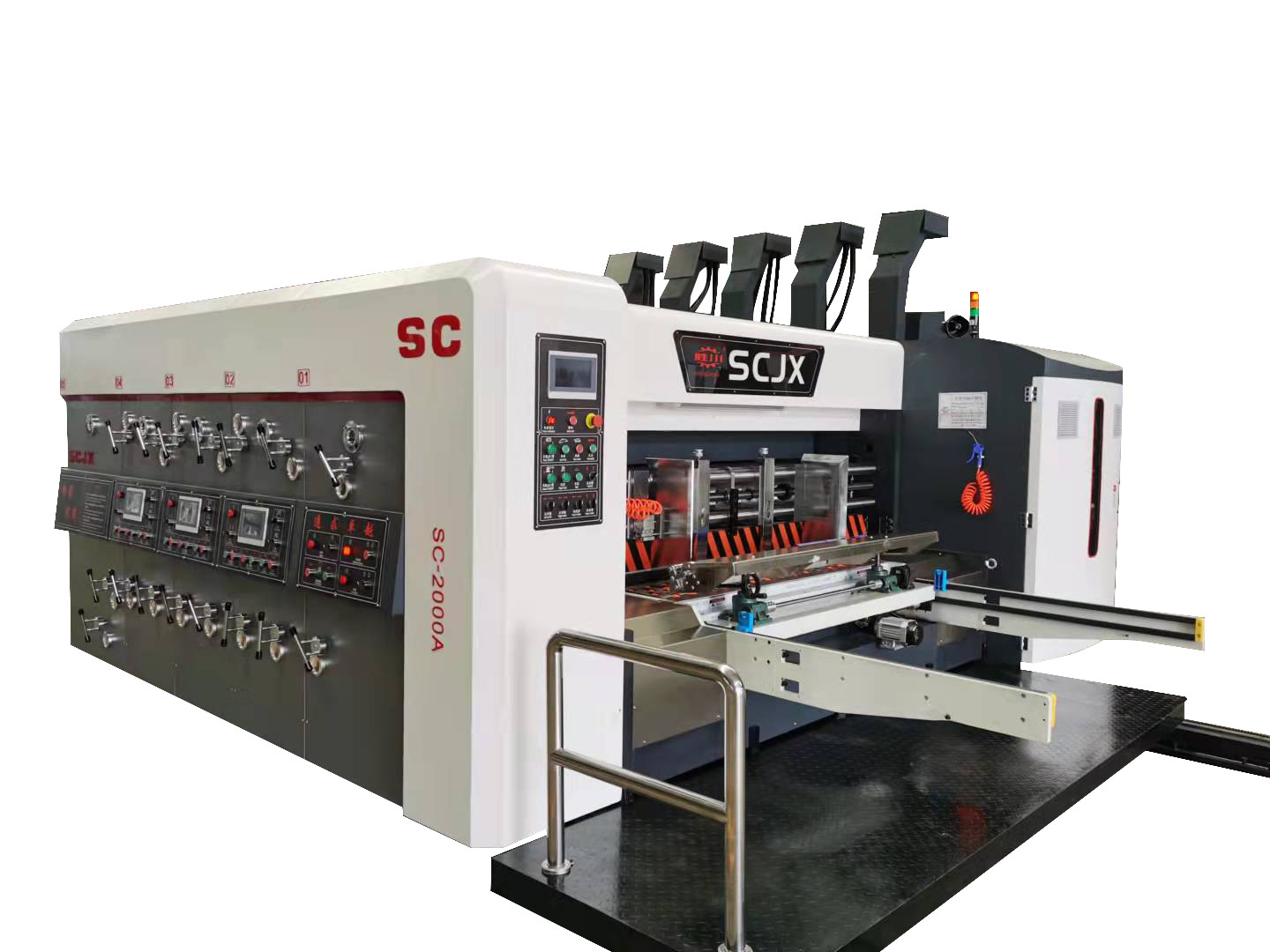

900x2000 Printing Machine Flexo 4 Colour Flexo Printing Machine Die Cutting

900x2000 Printing Machine Flexo 4 Colour Flexo Printing Machine Die Cutting

900x2000 Printing Machine Flexo 4 Colour Flexo Printing Machine Die Cutting can produce many kinds

of corrugated carton box with multi-colors.

Such as RSC carton, Die-cutting cartons and so on.

1. Adopt PLC touch screen control including the functions of indications of auto counting, speed, production, skip feeding and alarms;
2.Phase setting is done with Korean original digital meter to set current value to target value once precisely;
3.China famous brand of transmission gears are adopted which are hardened and ground＞60o Rockwell hardness;
4. Main electric components are purchased from the suppliers such as SCHNEIDER France and OMRON Japan;
5 Auto zeroing and auto reset;
6 Main motor start protection, main motor can not start when it is not locked to avoid maloperation;
7 Every unit of overall machine can be released automatically or separately, electric shifting and pneumatic locking with
acoustic alarm in traveling to secure operators safety. The auto brake is able to stop machine running;
8.Emergent protection: emergency switch is installed inside every unit to stop unit running inside machine for more security;

	Vacuum lead edge feeding, air volume, air pressure adjustable to fit paper size.   Dust device removes dust and dirt from printing surface, and enhance printing quality.
Die cutter & slotter 2 in 1 functions: Save cost Easy to operate Suitable for RSC box,Die cut box and etc.

Lead edge feeder
1.The transmission shaft is equipped with safety clutch to avoid misoperation and damage the machine (when the machine is not locked, the host cannot start operation).
2. suction fan, auxiliary feeding, to ensure smooth into curved board, air volume can be according to the size of the board for each section of the adjustment, the maximum guarantee the ability of vacuum adsorption, make the paper more accurate.
3. The control panel is equipped with a 10-inch touch screen, which can control the feeding, printing and slotting departments.

Print unit
1.The printing roller and trace pressing roller adop good quality without gap steel roller ,surface is treated by lapping finish,
after balance correct and hard chrome plating, smooth operation.
2.Adopting the hang printing plate system,it is easy to change printing plate ,and installed switch by feet ,which is convinent to hang printing plate.
3.Pneumatic brake mechanism.When the stage is separated or adjusted, the brake mechanism restricts the machine to rotate and maintains the fixed position of the original gear.

Slotting unit
1: PLC programmable control to the axial movement,adjust the box height by electrical,with memory storage function.
2:Self-locking function,ensures the long-term accuracy between the disc and the shaft.
3.Planetary gear-type phase adjustment mechanism with digital display
4.The creasing line wheel adopts the latest design of pre-pressing type, to protect the cardboard flatness.

Die cutting unit
1. mechanical type horizontal 40 mm, move device, die-cutting equalizer automatic compensation linear speed , can make the die cutting rubber gasket even wear, prolong service life.
2.repair adopt electric repair device, improve the rubber gasket repeat utilization rate, can repair 3-4 times.
3. die cutting roller automatic pneumatic separation device, reduce wear maxduia rubber gasket , thus improve the service life.

1. Q: Are you a factory or trading company?

A: We are manufacturer. Cangzhou Gerun Machinery Co.,Ltd.

2. Q: Where is your company located? How can I visit there?

A: Our company is located in Dongguang County,Cangzhou City,Hebei Province. You can find us by searching in Google.We are near from Beijing/Tianjin city, only need 2/4 hours,We can arrange car to pick up from airport or hotel.

3. Q: Do you have any working machine for us to visit?

A: Yes,We can arrange visiting for you to any our customer factory in China.

4. Q: How is the warranty of the machine?

A: Our machines have ONE YEAR WARRANTY. And the engineers available for overseas service.

Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation

and various types of weather conditions. A full set of maintenance and operation manuals is included.

We deeply know that, excellent and efficient after-sales service is an indispensable part for clients

to achieve due benefits. To offer most favourable and satisfactory service for wide clients, we hereby

solemnly promise:

1.professional technicians will be assigned to client's site to give guidance in equipment installation

and commissioning and hole training class for operators;we also offer charge-free training in our

company for operators and maintenance personnel if requsted by clients.

2.The equipment will be delivered accompanied with detailed installation and operation manual and

related information. Upon client's request,we can also offer plant layout design by free of charge.

All the equipment are offered with one year quality warranty. within the warranty period, maintenance of equipment and replacement of wearing parts are charge-free.After the guarantee is expired, we offer

long-term maintenance service and supply of parts and components at cost price. Clients Complaint:

A special round-clock fax will receive your complaints seriously. We will response within 24 to 48 hours

after receiving your complaints by phone call or going to site.
