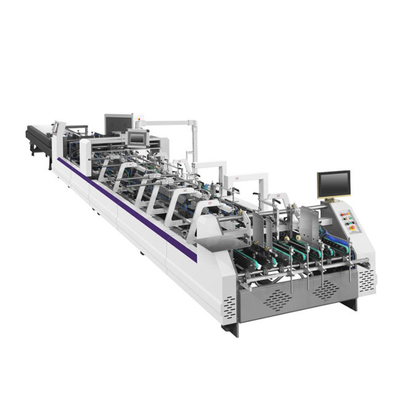

Automatic Corrugated Box Carton Folding And Gluing Machine For Packaging Printing Industry

1 sets

MOQ

To be negotiated

Price

Features Gallery Product Description Request A Quote

Features

Specifications

Warranty: 1 Year

Function: Paperboard Folding Gluing

Keywords: Cosmetic Box Folding Gluing

Speed: 0-300m/min

Automatic Grade: Fully Automatic

Color: As Request

Size: Can Be Customized

Function: Cardboard Folding Gluing

Highlight:

Automatic carton folding and gluing machine

carton folding and gluing machine

automatic folding carton box gluing machine

Basic Infomation

Place of Origin: Hebei province,China

Brand Name: IPACK

Certification: CE,ISO

Model Number: 880

Payment & Shipping Terms

Packaging Details: Wooden case packaging(optional) or well packed plastic film packaing

Delivery Time: 30-60days

Payment Terms: L/C, T/T, Western Union

Supply Ability: 10 sets/month

Gallery

Automatic Corrugated Box Carton Folding And Gluing Machine For Packaging Printing Industry

Product Description

Packaging Printing Industry Corrugated Paperboard Cardboard Functional Folder Gluer

Introduction

Automatic Corrugated Box Carton Folding And Gluing Machine For Packaging Printing Industry 0

Parameters

				180
B Max	(mm)	600	600	600
B Min	(mm)	80	80	80
C Max	(mm)	370	370	370
C Min	(mm)	60	90	90
D Min	(mm)	10	15	60
E Min	(mm)	8	8	8

Detailed Images

	Paper feeding section 6pcs Adjustable feeding belts to ensure easy adjustment, stable and smoothly feeding. Continuously Variable Speeder to ensure feeding internal and stable transmission. One-touch Pneumatic knife, easy for the adjustment of feeding belts.
Aligner section Equipped with auto-correction device to correct the obliquity and ensure the correct feeding
	Pre-folding Section Double-board structure with a set of pre-folding knife. Pre-fold angle is 180°and 135°, especially suitable for small but high cartons, more satisfactory while rapid prototyping

Lower gluing tank Equipped with the lower gluing tank.
	Folding and closing The folding is equipped with the driving belt, folding belts have corrective function, extension work, make the box forming more stable.
Trombone section Adjust the pressure easily and reliably to ensure the gluing quality; Equipped with pneumatic counting device which makes the counting conveniently. The press is equipped with independent speeder. The operator can set the collecting speed.
Transmission Press: Equipped with one-touch pneumatic pressure adjustment, easy operation.Press has two functions: 1. Waiting Function. When feeding is paused, press will auto enter into waiting state. 2. Travel switch, pause the machine in case of wrong collecting.

Packing and Shipping

Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road

transportation and various types of weather conditions. A full set of maintenance and operation

manuals is included.
