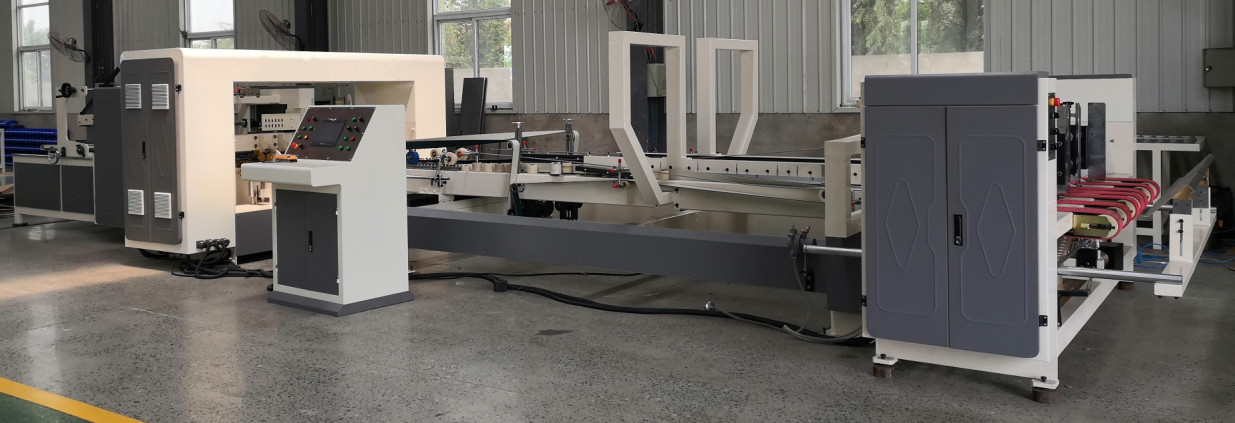

Automatic Machine For Folding Carton Boxes Gluing Stitcher Nailing Packing Machine
The automatic gluer and stitcher machine is composed of four parts: vacuum paper feeding part, gluing&
folding part, stitching part and counting stacking output part. Digital display control, PLC computer amplitude
modulation, double frequency synchronous operation, with simple, fast, reliable and accurate control mode.
Automatic paper feeding, automatic glue folding, automatic stitching, automatic counting, automatic stacking
output, average gluing speed 140 m/min, average stitching speed 50-60 pieces/min. High-speed energy saving,
saving labor cost.
Machine Briefing:
1, Suit for A, B, C, AB Flute and 3 layer, 5 layer corrugated carton paste and stitch.
2, Stitching pitch range:40-500mm
3, Stitching angle:45 degree
4, Adjustable single or double stitch,in compliant with Chinese standard 17(2.0*0.7mm)or 18(1.81*0.71mm)size nail.
Main Features:
1, Fast folding
2, 8 volume adjustable vacuum feeding belts ensures accurate feeding.
3, Three times re-creasing and folding knife get a more accurate folding.
4, Good control on fish tail phenomenon to decrease the waste
5, Machine has sheet separation and registration unit, fast order change and neat folding and gluing.
6, Using intelligent wire feeding system with less wire wheel wearing.
7, PLC, HMI and main Servo motor makes the operation of the machine simple and stable.
| Model |
SCS- 2400 |
SCS- 2600 |
| Max. feeding paperboard size (mm) |
1200*2400 |
1200*2600 |
| Min. feeding paperboard size (mm) |
300*900 |
300*900 |
| Power required |
12 kw 380V 3phase 50HZ |
12 kw 380V 3phase 50HZ |
| Paperboard thickness |
3 or 5 layer cardboard |
3 or 5 layer cardboard |
| Control way |
PLC touch screen |
PLC touch screen |
| Machine weight |
6.0tons |
7.0 tons |
| Dimensions |
L11000 X W3000 X H1600 |
L12500 X W3400 X H1600 |
Automatic gluing stitching machine is new designed multi-function machine. It can do folding,
gluing and stitching one time to make standard RSC corrugated cartons.
|
Feeding section
1. Belt Lead edge feeding can be moved from side to side, Improve the coordination performance of the cardboard front flap and side flap
2. The height of press wheel is adjustable, suitable for cardboard thickness of 2-8 mm.
3. Linked with the folding part, frequency control, design speed 0-150m/Min, paper feeding speed 0-140m/Min.
4. The front baffle and side baffle of the paper feeding part can be adjusted by electric power left and right, and the paper holder can be adjusted forward and backward by electric.
|
|
Gluing and Folding section
The folding characteristics is mounted with creasing wheel,carries on second time of creasing.This makes the folding of the carton more beautiful.This machine before stitching box in the folded part have a shaping device,folding the carton before stitching,ensure there is no scissors difference.
|
|
|
Stitching unit
1. The stitching head adopts lifting function, which improve the speed of changing orders from stitching mode to gluing mode
2. Japan Mitsubishi imported double servo drive, accurate, mechanical transmission part reduced, can effectively reduce the failure rate of machinery.
3. Touch screen operation, parameter (stitching distance, stitching number, stitching type, back baffle) easy and fast conversion
|
Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road
transportation and various types of weather conditions. A full set of maintenance and operation
manuals is included.
