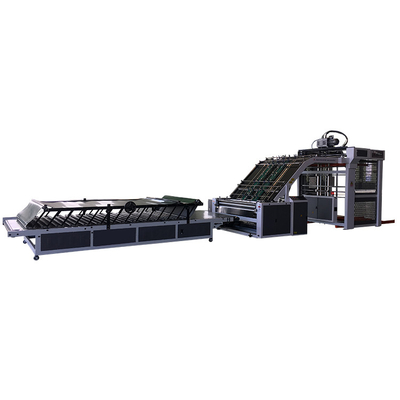

Automatic Corrugated Carton Machine Pasting Machine For Corrugated Boxes

Automatic Corrugated Cardboard Carton Flute Laminator Pasting Machine


This machine is used for the lamination of top colorized sheets and bottom corrugated paper.

The machine features simple operation, less maintenance, high speed and lamination precision.

Characteristics:

1. Special front location with high accuracy.

2. Surface paper feeding adopts overlapping feeding style which makes paper conveyed more stable.

3. With the advanced PLC tracking technology, the size of paper automatically adjusts the relevant parameters,

which makes the machine keep operating at the best state.

4. Bottom paper feeding adopts rotary telescopic frame, which adapts to warped corrugated board.

5. The feeder with pre-stacking device, reducing the stopping time of machine and improving productivity.

6. Bottom paper using suction automatic feeding, can adjust wind strength in the touch screen, and is equipped with a belt humidifying function

7. Standby stack table can pile paper under non-stop situation, along the rail into the elevator, high working efficiency

8. Imported electrical components, to ensure the stability of the circuit system, PLC tracking technology, automatic fault alarm

9. Fully automatic glue supplementary system, can automatically replenish the loss of the amount of glue, and cooperated with the glue recycling

10. Independent water tank control cycle, ensure the bottom paper back dry, at the same time cleaning up roller, glue receive tank and back glue tank

11. Single side adjustment of the roller pressure, and equipped with a dial gauge, the replacement of the bottom paper one-step-to-reach

1. Top sheet forwarded by automatic feeder on higher table is specially designed and the sheets can be piled up to 1.5m;

2. Bottom sheet is automatically feed and The two sheets are plied freely dispatched in high efficiency.

3. The machine is controlled by PLC which made feeding process smoother and more accurate;

4. Flexible front positioning can avoid bottom sheet exceeding the top sheet and adjust back and forth lamination of paperboard to bottom paperboard (above 350g/m2),and to A/B/C/D/E types of flute corrugated cardboard.

5. Automatic pasting mechanism to economize the paste consumption.

Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road

transportation and various types of weather conditions. A full set of maintenance and operation

manuals is included.
