Name: CE Fully Automatic Folder Gluer Stitcher For Carton Box Making
Brand: Cangzhou Gerun Machinery Co.,Ltd
SKU: 2600
Price: 76.00 USD
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Warranty: 3 Year

Type: Automatic

Keywords: Folding Gluing Stitching Stapler Machine

Speed Of Stitcher: 120m/min

Speed Of Gluing: 200m/min

Application: 3&5 Ply Carton Box

Automatic Grade: Automatic

Condition: New

After-sales Service Provided: Engineers Available To Service Machinery Overseas,Online Support,Video Technical Support,Field Installation

Product Name: Best Smart Glue Gluing Machine Price For Sale

Usage: Corrugated Paperboard Folding Gluing

Highlight:

CE Automatic Folder Gluer Stitcher

carton box Automatic Folder Gluer Stitcher

fully automatic carton box making machine

Basic Infomation

Place of Origin: Hebei province,China

Brand Name: IPACK

Certification: CE,ISO

Model Number: 2600

Payment & Shipping Terms

Packaging Details: Wooden case packaging(optional) or well packed plastic film packaing

Delivery Time: 30-60days

Payment Terms: L/C, T/T, Western Union

Supply Ability: 10 sets/month

Gallery

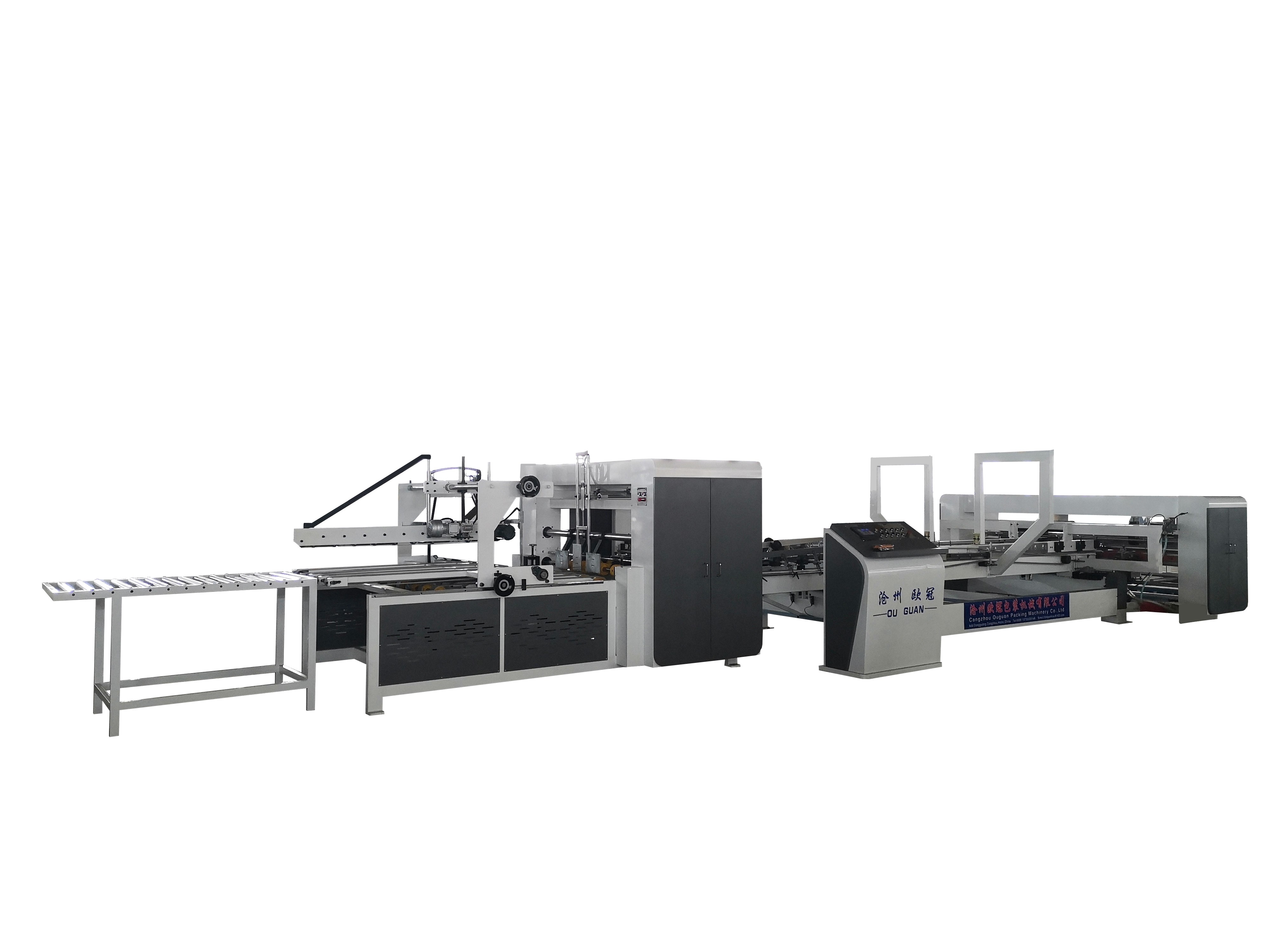

CE Fully Automatic Folder Gluer Stitcher For Carton Box Making

Product Description

Full Automatic Carton Box Stitcher Folding Gluing Stitching Machine With CE

Introduction

The automatic gluing and stitching machine consists of feeding unit, folding unit, stitching unit and alignment unit.

Frequency conversion speed regulation, simple and reliable operation. Automatic folding, automatic counting, automatic stacking and output.The average nail box speed is 80 m/min, 40-70 pieces/min. Folding speed is 170 m / min, 100-300 pieces/min.

CE Fully Automatic Folder Gluer Stitcher For Carton Box Making 0

Parameters

Model	SCS- 2400	SCS- 2600
Max. feeding paperboard size (mm)	1200*2400	1200*2600
Min. feeding paperboard size (mm)	300*900	300*900
Power required	12 kw 380V 3phase 50HZ	12 kw 380V 3phase 50HZ
Paperboard thickness	3 or 5 layer cardboard	3 or 5 layer cardboard
Control way	PLC touch screen	PLC touch screen
Machine weight	6.0tons	7.0 tons
Dimensions	L11000 X W3000 X H1600	L12500 X W3400 X H1600

CE Fully Automatic Folder Gluer Stitcher For Carton Box Making 1

Detailed Images

Automatic gluing stitching machine is new designed multi-function machine. It can do folding,

gluing and stitching one time to make standard RSC corrugated cartons.

	Feeding section 1. Vacuum suction feeding to feed warping paperboard easily. 2. Quality electromagnetic clutch and brake adopted, feeding section is controlled independent, operation easily. 3. Scorer wheel adjustable, suit for 2-8mm thick paperboard.
Gluing and Folding section Solid Beam Structure , not square tube !! 1. Simple structure and high reliability, glue quantity adjustable, cleaning easily. 2. Stainless steel glue wheel adopted, long life and saving glue cost. 3. Improved quality rubber belt adopted, automatic folding.
	Stitching unit 1. Double imported servo drive high precision,reduce the mechanical transmission part, and reduce the mechanical failure rate. 2. Stitching department adopt the touch screen operation. Parameter (stitching distance, number, species and back baffle) could change expediently. 3. Control system adopts Delta PLC control system.
Counter and stacker section: 1. Stacking and counting are simple and reliable. 2. Digital control, operation easily and reliable, No-stop put in data and automatic counting. 3. With rectification function. 4. Paperboard counting and put out by pneumatic, stable and quickly.

Packing and Shipping

Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road

transportation and various types of weather conditions. A full set of maintenance and operation

manuals is included.

Our Services

CE Fully Automatic Folder Gluer Stitcher For Carton Box Making 8

Factory

CE Fully Automatic Folder Gluer Stitcher For Carton Box Making 9

CE Fully Automatic Folder Gluer Stitcher For Carton Box Making 10
