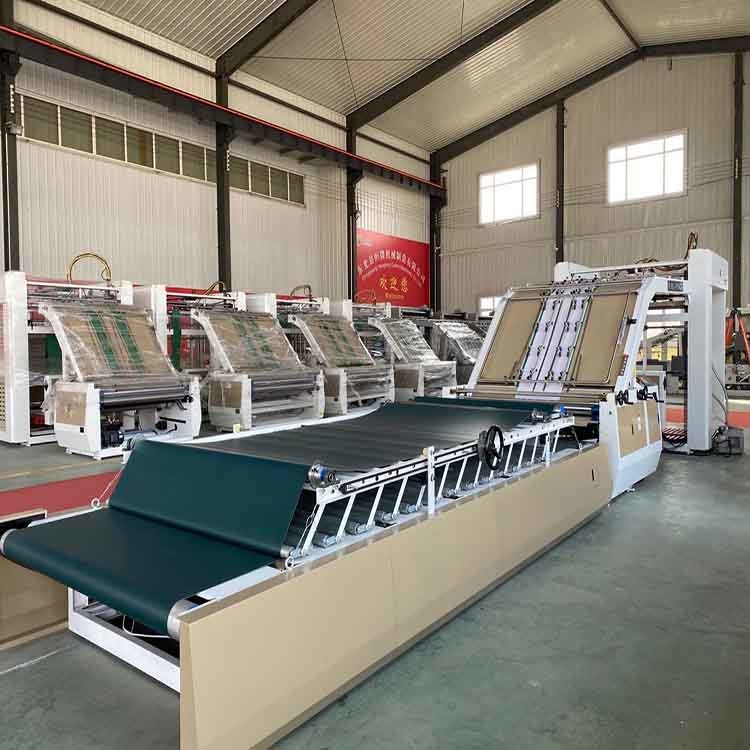

Corrugated Box Paper Lamination Machine To Corrugated Cardboard Laminating Machine
The paper can be laminated with paperboard to increase the strength and thickness of the material or
special effects. After the die-cutting, it can be used for packaging boxes, billboards and other purposes.
Principles:
The top paper is sent out by the upper paper feeder and sent to the start detector of the positioning mechanism
for detection. Then the bottom paper is sent out; after the bottom paper is coated with glue on the glue wheel, the

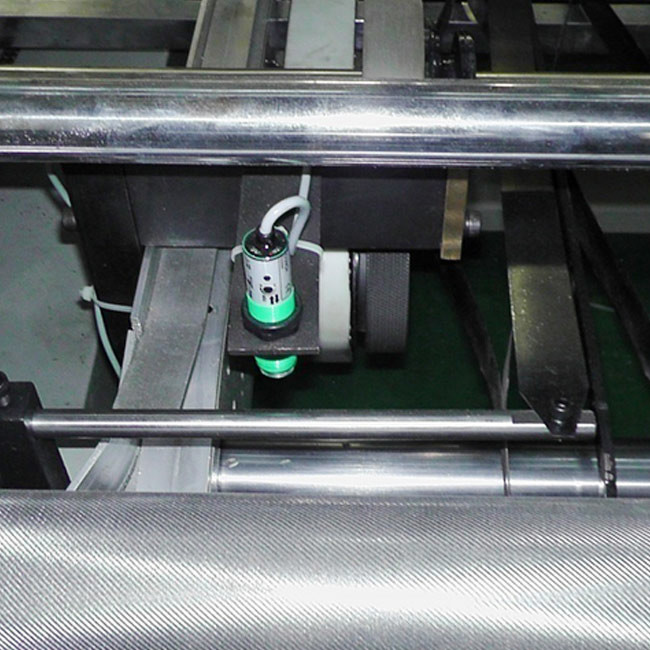

top paper and the bottom paper are respectively conveyed to the paper Synchronous detectors on both sides, after
the detection, the controller calculates the error value of the paper and the bottom paper, and the servo compensation
device on both sides of the paper compensates the paper to a predetermined position for splicing, and then pressurizes
the conveying. The machine presses the paper and conveys it to the delivery machine to collect the finished product.
Features:
1, Cardboard to corrugated paper, cardboard to cardboard, double fuction
2, Time and effort saving, easy to operate
3, Servo compensation positioning, automatic tracking system
Structure:

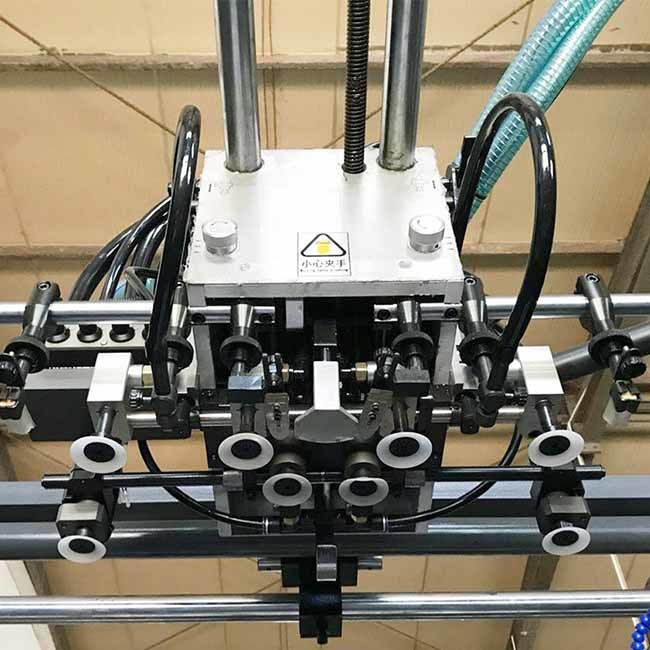

A. Upper Paper Feeder: It can send stacks of 150-800gsm paper from above.
B. Bottom feed: It can send 0.5~1Omm paperboard from below.
C. Gluing mechanism: The glued water can be applied to the fed paper.
D. Regulatory organization - Fits the two papers according to the set tolerances.

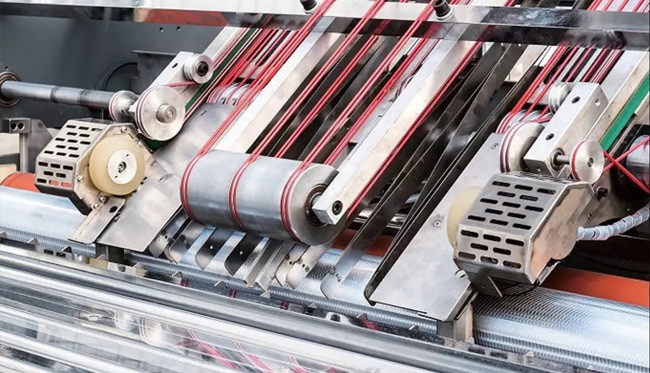

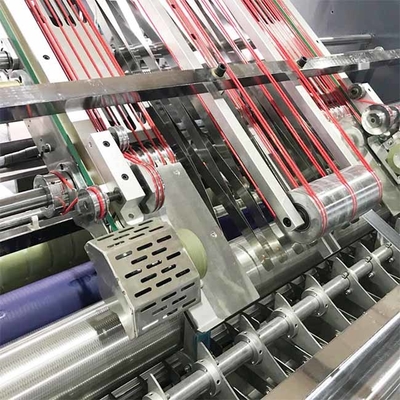

E. Pressurizing Conveyor... Presses the attached paper and conveys it to the delivery section.
| MODEL |
SC-1450U |
SC-1650U |
| Max Sheet |
1450×1450mm(57''x*57'') |
1650×1650mm(64''x*64'') |
| Min Sheet |
400×400mm |
400×400mm |
| Top Paper Thickness |
150-500g |
150-500g |
| Botton Sheet Thickness |
A,B,C,E,F flute,4 ply corrugated paper(AA,AB,BB)
cardboard above 300 GSM
|
| Max Speed |
12000pcs/h |
12000pcs/h |
| Fitting Precision |
±1mm |
±1mm |

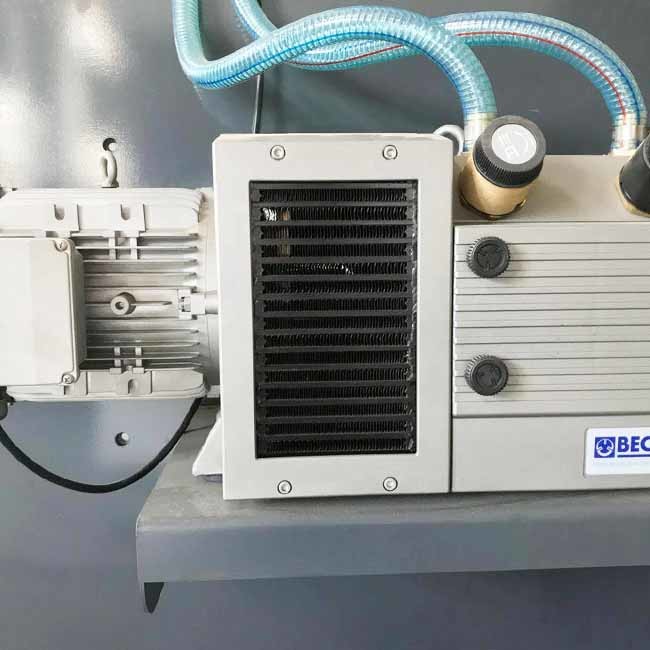

| Air consuption |
1.2m3/min |
1.2m3/min |
| Measurement |
23.6×2.7×3M |
23.6×2.9×3M |
| Machine Power |
30KW |
32KW |
Applicable materials:
Paste paper --- 150 ~ 800g/m thin paper, cardboard.
Bottom paper---0.5~10mm paperboard, single-sided cardboard, multi-layer corrugated paper, pearl board, honeycomb board, styro foam board.
Glue - resin, etc., PH value between 6 ~ 8, can be applied to the glue.
|
Stainless steel material roller,never rust, guarentee the amount of glue is even.
The glue roller is made of stainless steel and anilox roller ,it can reduce the quantity of the glue and improve the intensity of the cartons. Deft design keep the carton perfect.
|
Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road
transportation and various types of weather conditions. A full set of maintenance and operation
manuals is included.
OUR SERVICE:
We provide whole establish new factory solution,give customer a comprehensive design plant idea,consider the target customer market.We own a great team,engineer service to oversea country is available.
2 We provide loan to below business situation:
1) use first
2) payer later
3) special service
we can provide financial support for your project.
Mutual trust is the foundation of our business.
3 After-Sales Service
1) Engineers available to service machinery overseas.(including installation,debugging,training etc.
2) Whole machine main parts guarantee for 1 year.10 years warranty for main transmission gear ensure print accuracy.
3) 25 years experience,reply within 12 hours,provide solve solution within 24 hours.
